Kyocera KM-8030 Service Manual

2FB/2FC-2.0
2-2-5
(3) Motors

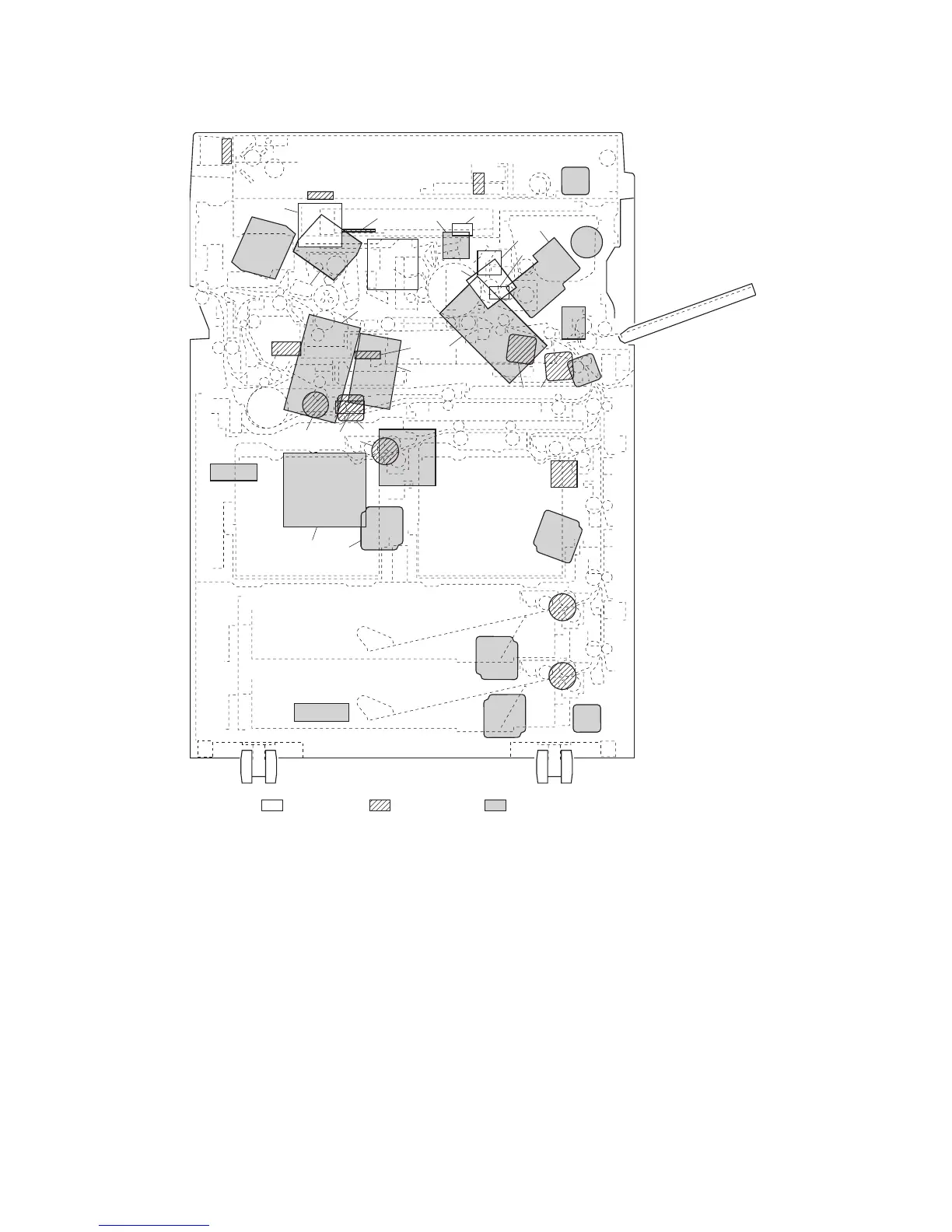

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the drum and cleaning unit.
2. Scanner motor (SM)..................................... Drives the optical system.
3. Paper feed motor 1 (PFM1) ......................... Drives cassette 1 paper feed.
4. Paper feed motor 2 (PFM2) ......................... Drives cassette 2 paper feed.
5. Paper feed motor 3 (PFM3) ......................... Drives cassette 3 paper feed.
6. Paper feed motor 4 (PFM4) ......................... Drives cassette 4 paper feed.
7. Lift motor 1 (LIM1)........................................ Operates the deck base in cassette 1 and detects the paper level
in cassette 1.
8. Lift motor 2 (LIM2)........................................ Operates the deck base in cassette 2 and detects the paper level
in cassette 2.
9. Lift motor 3 (LIM3)........................................ Operates the lift cassette lift plate.
10. Lift motor 4 (LIM4)........................................ Operates the lift cassette lift plate.
11. Registration motor (RM)............................... Drives the registration rollers.
12. Feed motor (FDM) ....................................... Drives the paper feed section.
13. MP feed motor (MPFDM)............................. Drives the MP tray paper feed section.
14. Vertical feed motor (VFDM) ......................... Drives the vertical conveying section.
21
22
23
4
37
36
8
28
7
3
5
6
9
14
10
38
26
25
20
40
16
1
12
11
13
32
35
24
15
18
33
17
41
19
34
31
29
30
27
2
39
Machine front Machine inside Machine rear
