(2) Detaching and refitting the lower cleaning roller
Follow the procedure below to check or replace the lower cleaning roller.
Procedure
1. Remove the fuser unit (see page 1-6-70).
2. Remove two screws and then remove the
lower cleaning roller unit from the fuser unit.

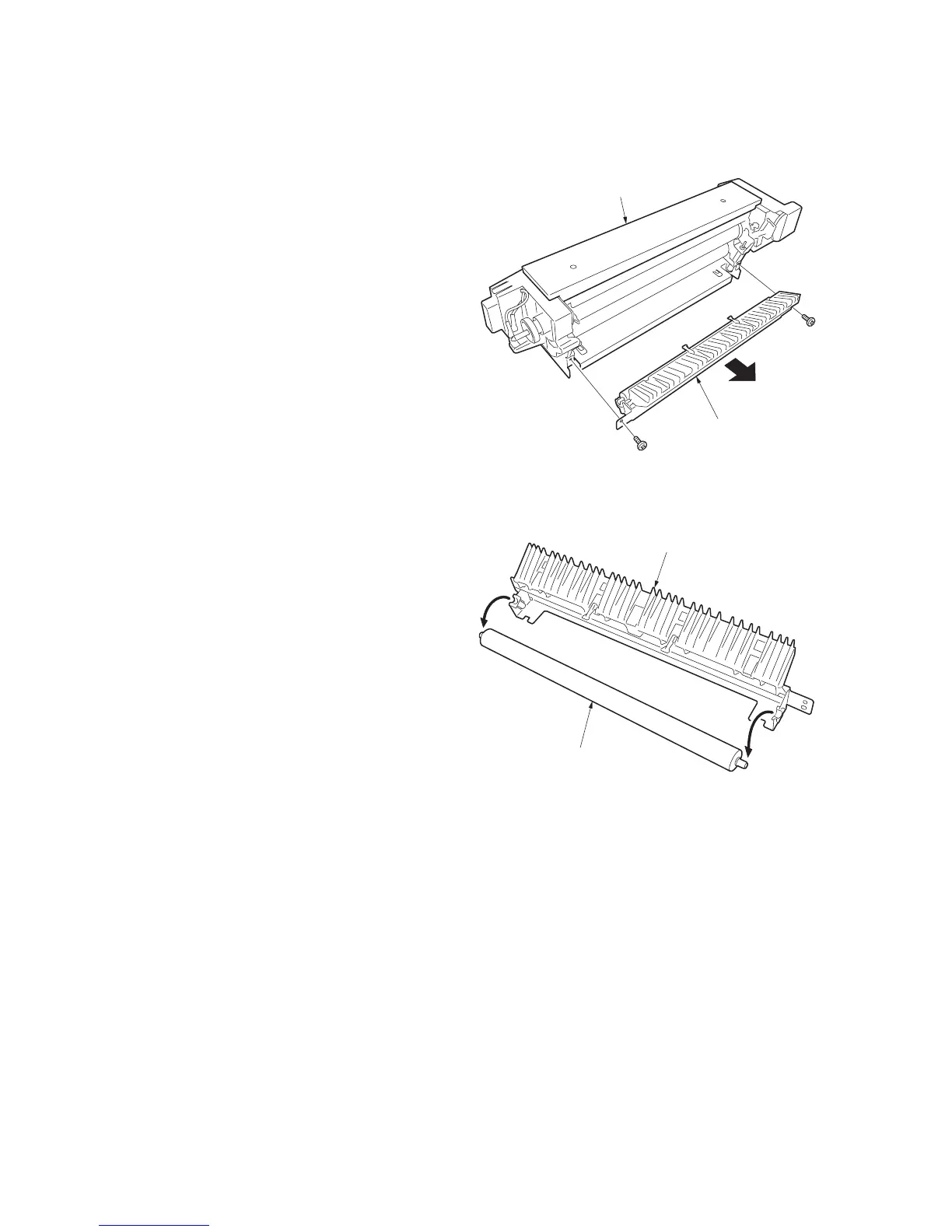

Figure 1-6-136
3. Remove the lower cleaning roller from the
lower cleaning roller unit.
4. Check or replace the lower cleaning roller,
and refit the roller to the fuser unit.
5. Refit the fuser unit.
Figure 1-6-137
Lower cleaning
roller unit
Fuser unit
Lower cleaning
roller unit
Lower cleaning roller
