2FB/2FC-3
1-3-13
1-3-3 Installing the key counter (option)
Key counter installation requires the following parts:
Key counter set (P/N 302A369705/2A369705)
Contents of the set:
Key counter cover (P/N 2A360010)
Key counter retainer (P/N 66060030)
Key counter cover retainer (P/N 66060022)
Key counter mount (P/N 66060040)
Key counter socket assembly (P/N 41529210)
Four (4) M4 x 6 TP-A screws (P/N B4304060)
One (1) M4 x 20 TP-A screw (P/N 7BB100420H/BB040740)
One (1) M4 x 6 TP-A screw (P/N B4104060)
One (1) M4 x 30 binding screw (P/N B1B54300)
Two (2) M3 x 6 screws (P/N B2303060)
One (1) M3 bronze nut (P/N C2303000)
One (1) M4 x 8 binding screw (P/N B1303080)*
Two (2) M4 x 10 binding screws (P/N B3024100)*
Two (2) M4 x 10 TP-A screws (P/N B4304100)*
Two (2) M4 x 10 binding screws (P/N B8014100)*
*These parts are not used.
• Before installing the key counter, press the Power key on the operation panel to off. Make sure that the Power lamp
is off before turning off the main power switch. And then unplug the power cable from the wall outlet.
Turning off the main power switch before pressing the Power key to off may cause damage to the equipped hard
disk.
Procedure
1. Fit the key counter socket assembly to the key counter retainer using the two screws and nut.
2. Fit the key counter mount to the key counter cover using the two screws, and attach the key counter retainer to the
mount using the two screws.

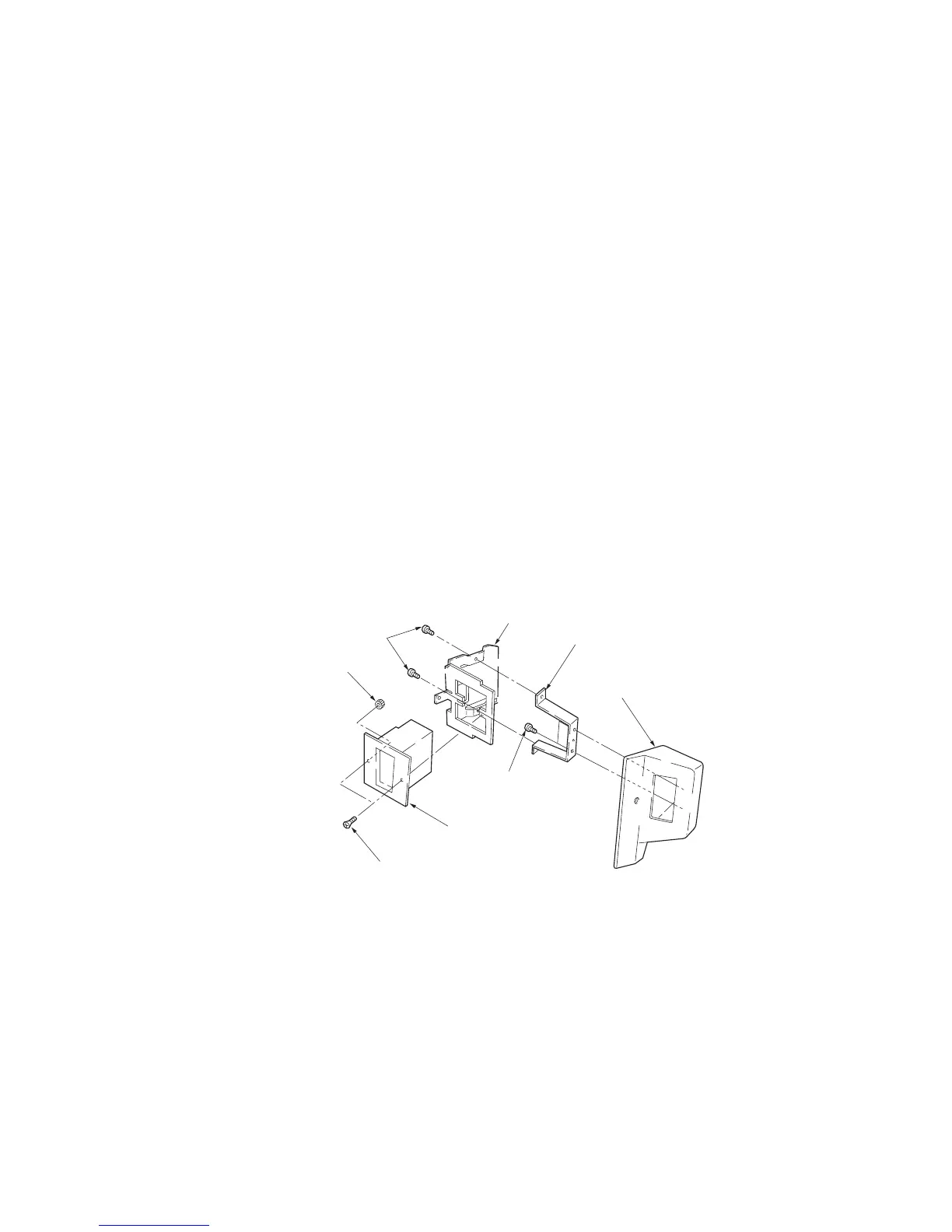

Figure 1-3-21
Key counter retainer (66060030)
M4 x 6 screw (B4304060)
Nut M3 (C2303000)
Key counter mount (66060040)
Key counter cover
(2A360010)
Key counter socket assembly
(41529210)
M4 x 6 screw (B4304060)
M3 x 6 screw (B2303060)
To Next Page
