(4) Adjusting the tension of original feed belt
Perform the following adjustment if no original feed or multiple sheets of original occurs for feeding from DP.
Procedure

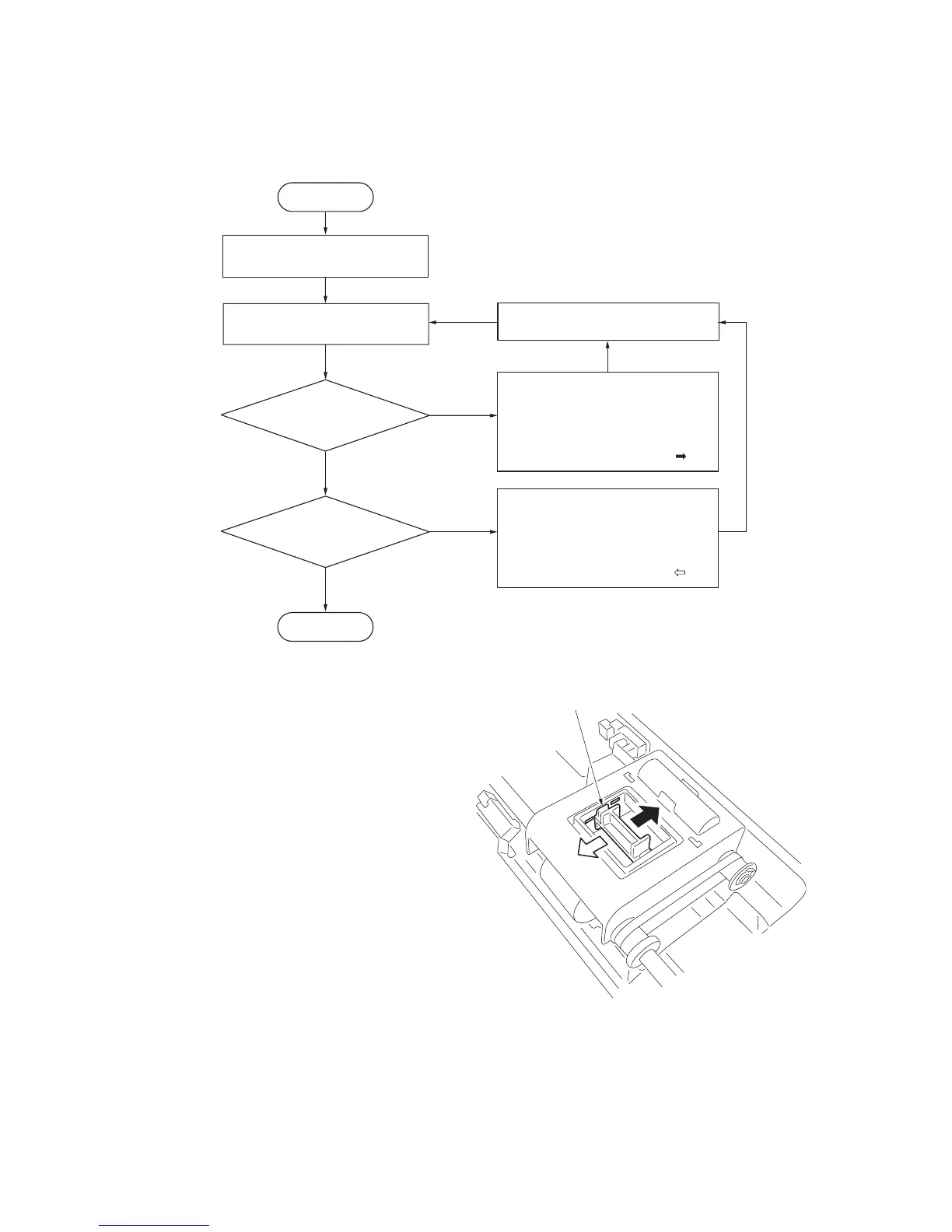

Figure 1-6-179
Refit the upper original cover and
close the document processor cover.
No
Yes
Press the start key and
make a test copy.
Start
End
Does multiple sheets of
original feed occur?
Does no original
feed occur?
No
Place the some original
sheets on the DP.
Open the document processor cover
and remove the upper original feed
cover (see page 1-6-83).
Remove the lever using the flat-blade
screwdriver and move the lever in
the direction of the black arrow ( ).
Yes
Open the document processor cover
and remove the upper original feed
cover (see page 1-6-83).
Remove the lever using the flat-blade
screwdriver and move the lever in
the direction of the white arrow ( ).
Adjusting lever
To Next Page
