2FB/2FC-3
1-6-27
Yes
No
Start
Enter maintenance mode.
Enter 034 using the numeric keys.
Press the start key.
Press the interrupt key.
Press the start key to output a test
pattern (feed paper from the
MP tray).
Is the image correct?
Press the start key.
The new setting is stored.
Press the stop/clear key to exit
maintenance mode.
End
Select LSUOUT or LSUOUT
(DUP) on the touch panel.
For output example 1, decrease
the value using the cursor down key.
For output example 2, increase
the value using the cursor up key.
A setting value is corrected when the sum total of
the setting value of LSUOUT and LSUOUT (DUP)
is 50 or more and a difference is less than -50.
Setting range (initial setting)
LSUOUT: -5.0 to 5.0 (0)
LSUOUT (DUP): -2.0 to +2.0 (0)
Changing the value by 1 moves the
center line by 0.1 mm.
Select CASSETTE
on the touch panel.
Touch panel display
LSUOUT: Center line adjustment data
LSUOUT (DUP): Center line adjustment data for
duplex copying (second face)

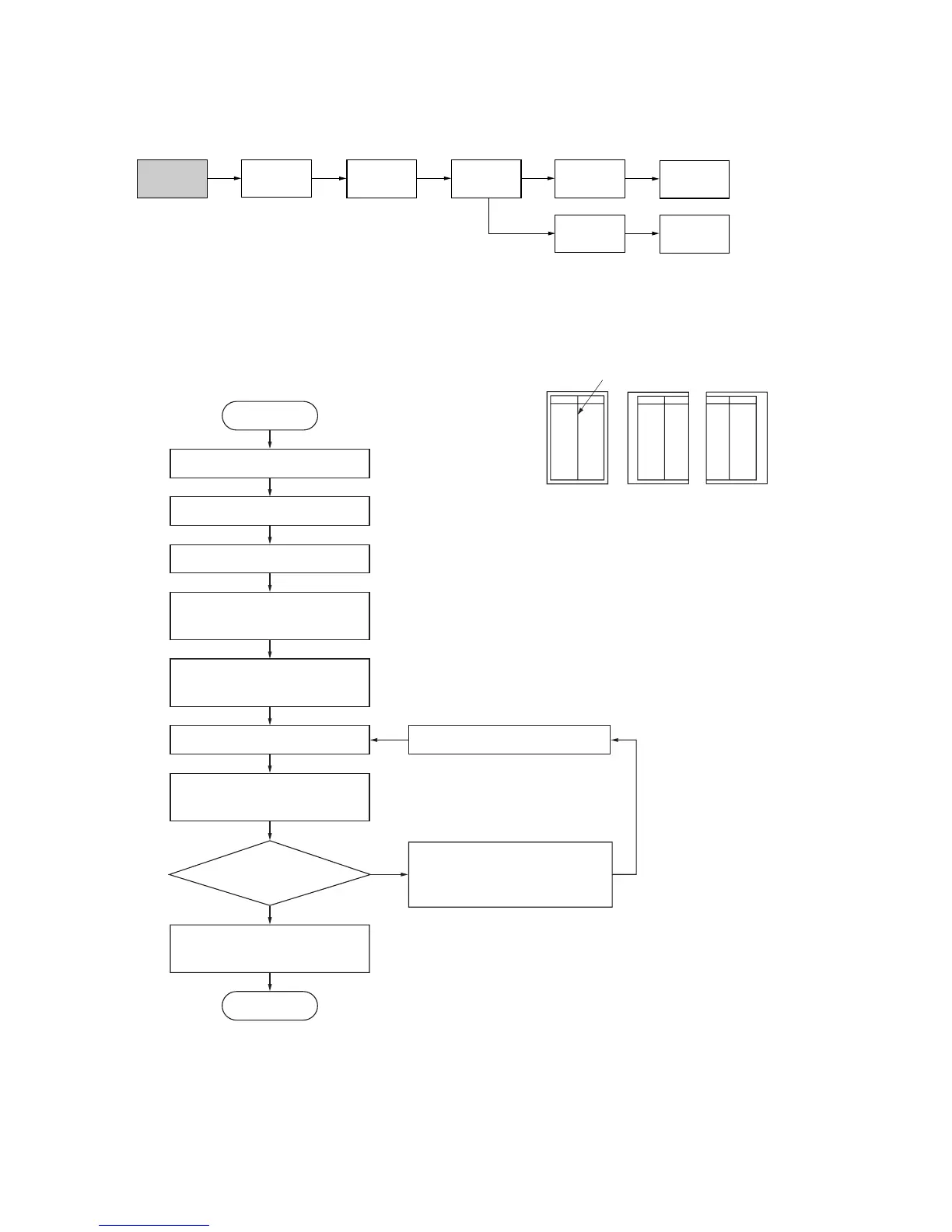

(8-3)Adjusting the center line of image printing
Make the following adjustment if there is a regular error between the center lines of the copy image and original.
<Caution>
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.
<Procedure>
Figure 1-6-53
U034
U404
(P. 1-6-95)
U067
(P. 1-6-53)
U072
(P. 1-6-92)
Front (CCD adjustment)
Back (CIS adjustment)
U404
(P. 1-6-95)
U072
(P. 1-6-92)
U403
(P. 1-6-55)
U402
(P. 1-6-28)
Center line of printing
Correct image Output
example 1
Output
example 2
To Next Page
