2FB/2FC
1-6-63
(2) Detaching and refitting the transfer belt
Follow the procedure below to replace the transfer belt.
Caution:
When handling the transfer belt, hold the both end of the transfer belt (within 10 mm), never touch the surface with bare
hand.
Be careful not so as to adhere grease on the surface of the transfer belt.
Procedure
1. Remove the transfer unit (see page 1-6-61).

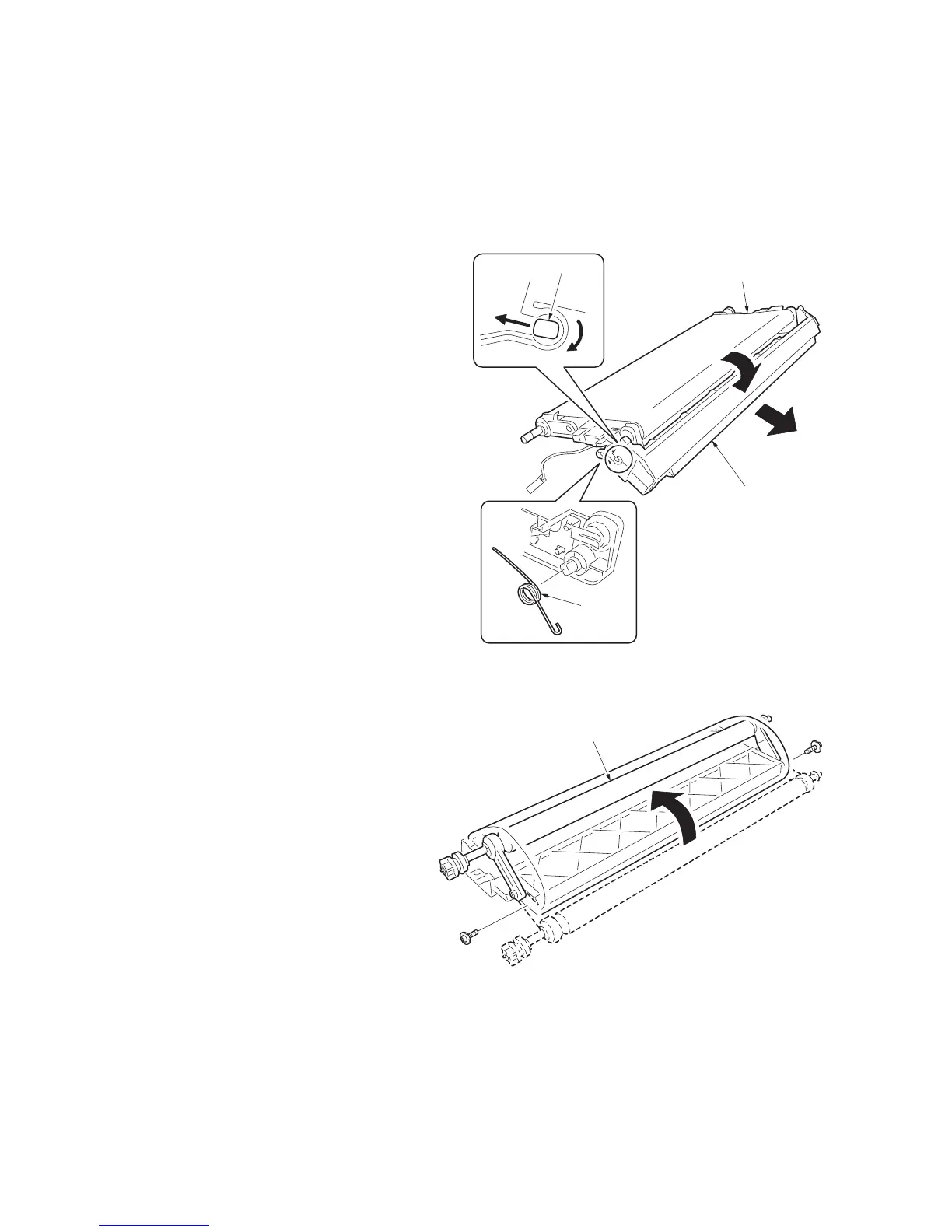

2. Rotate the transfer front guide and fit the
angle of the end of the inserted shaft as
shown in the figure, and then remove the
transfer front guide from the transfer unit.
3. Remove the spring from the transfer unit.
Figure 1-6-117
4. Remove each screw at front and rear trans-
fer unit, and rotate the transfer belt roller as
shown in the figure.
Figure 1-6-118
Front transfer guide
Transfer unit
Inserted shaft
Spring
Transfer belt roller
To Next Page
