2FB/2FC-2.0
1-3-24
1-3-5 Installing the side feeder (option)
• Output connector of the main machine is non-LPS. Please use the item below interconnecting cable.
P/N: 3JD27220
Circuit type: Non-LPS
Circuit specs.: 24 V DC
• Before installing the side feeder, press the Power key on the operation panel to off. Make sure that the Power lamp
is off before turning off the main power switch. And then unplug the power cable from the wall outlet.
Turning off the main power switch before pressing the Power key to off may cause damage to the equipped hard
disk.
Procedure

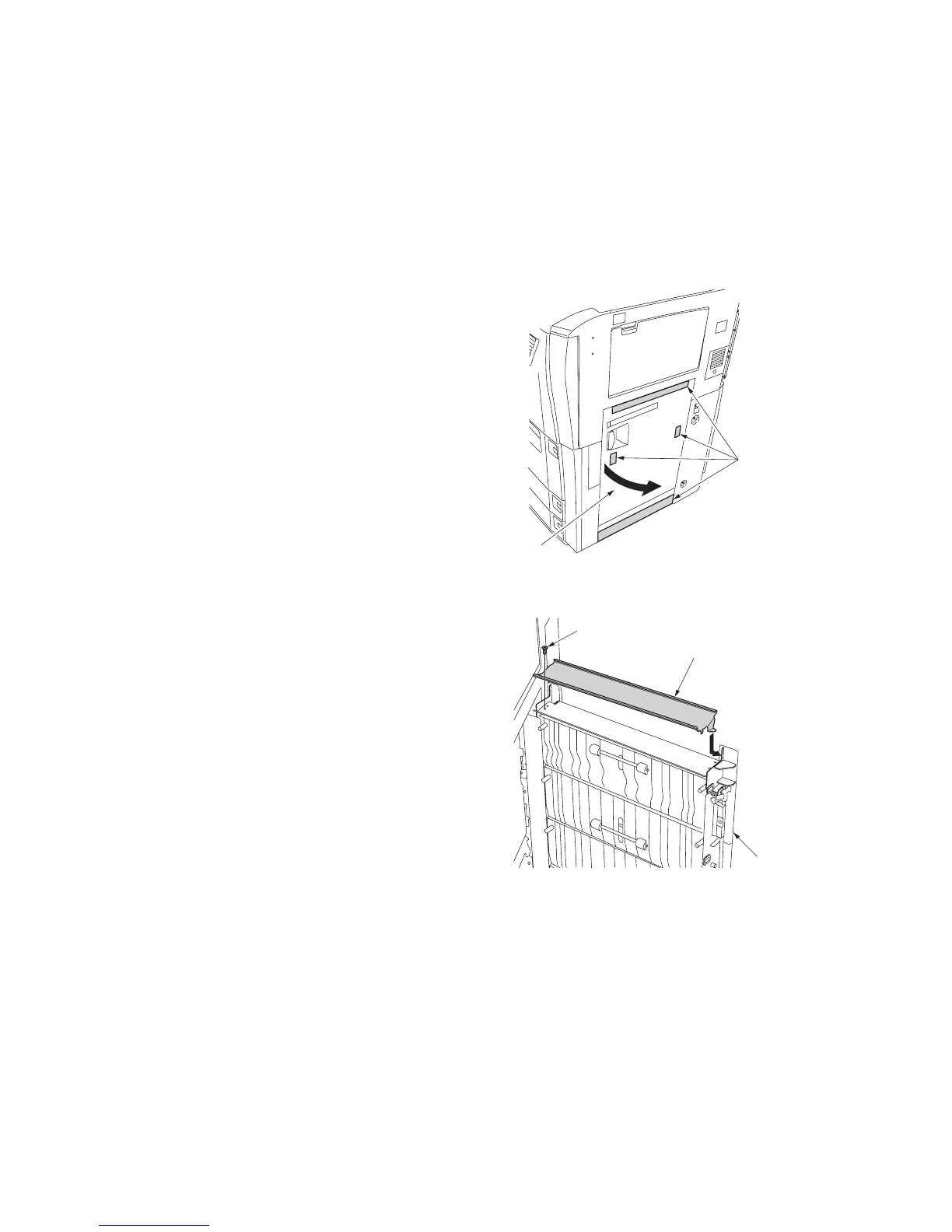

1. Cut out the four hole covers from the right
cover of the machine.
Use nippers to trim the burrs from the holes.
2. Open the right cover.
Figure 1-3-47
3. Insert one side of the guide plate into the
top, and fix the plate using the M3 x 6 tap
tight S screw.
4. Close the right cover.
Figure 1-3-48
Hole covers
Right cover
Guide plate
Right cove
To Next Page
