2FB/2FC
1-6-67
(2) Detaching and refitting the cleaning blade
Follow the procedure below to replace the cleaning blade.
Procedure
1. Remove the cleaning unit (see page 1-6-
66).
2. Release two claws and then remove the
upper cleaning cover from the cleaning unit.

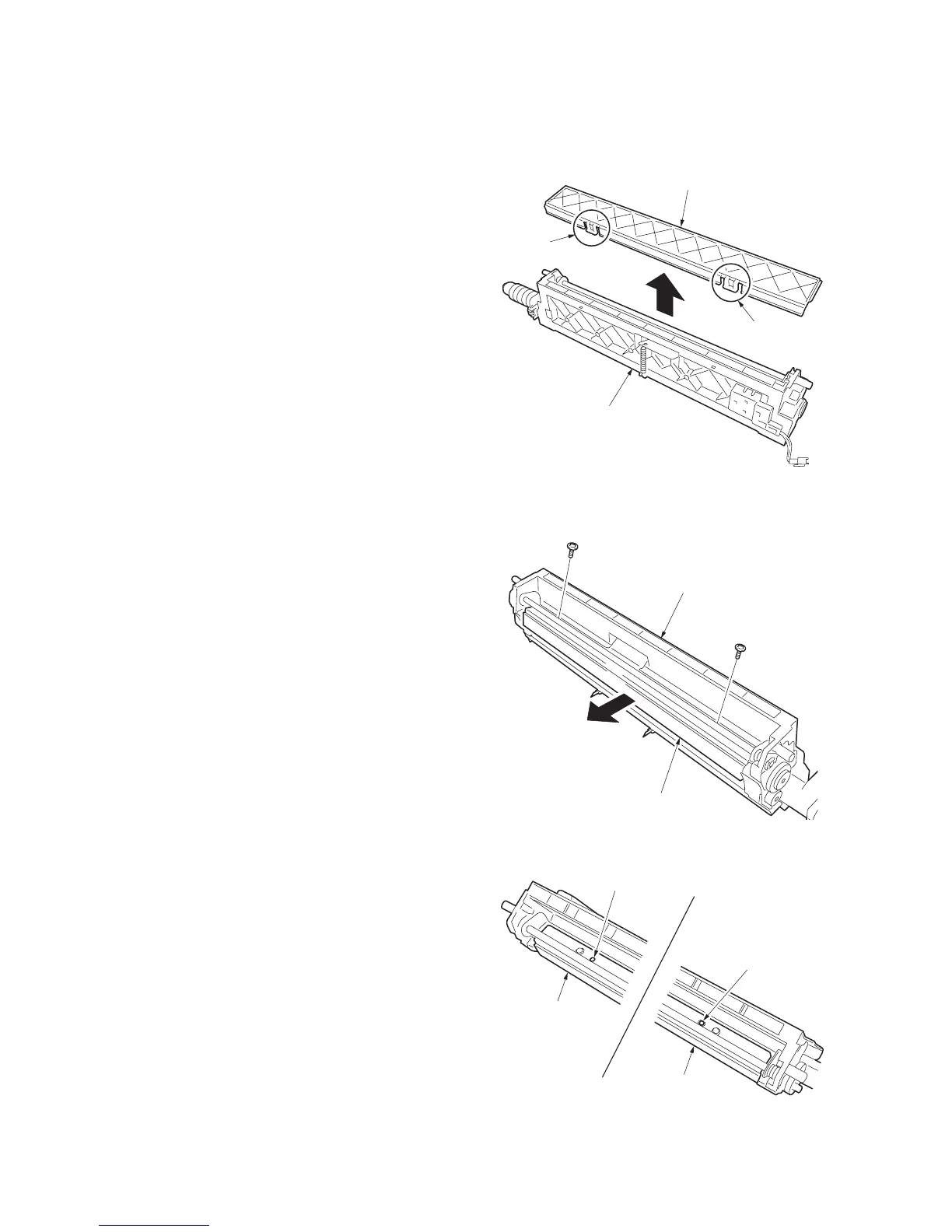

Figure 1-6-126
3. Remove two screws and then remove the
cleaning blade from the cleaning unit.
Figure 1-6-127
4. Replace the cleaning blade.
* When attaching the cleaning blade, adjust
two projections.
5. Refit the upper cleaning cover to the clean-
ing unit.
6. Refit the cleaning unit.
Figure 1-6-128
Cleaning unit
Upper cleaning cover
Claw
Claw
Cleaning blade
Cleaning unit
Cleaning blade
Cleaning blade
Projection
Projection
To Next Page
