CHARGING AND ST
ARTING SYSTEM
90-828631R3 MARCH 1999
Page 2B-17
Starter Motor P/N 50-825095 (T
op Mounted)
Removal
CAUTION
Disconnect the battery leads from the battery before removing starter
.
1.
Disconnect the battery leads from the battery
.
2.
Disconnect the ground cables.
3.
Remove starter mounting bolts.
4.
Remove starter
.

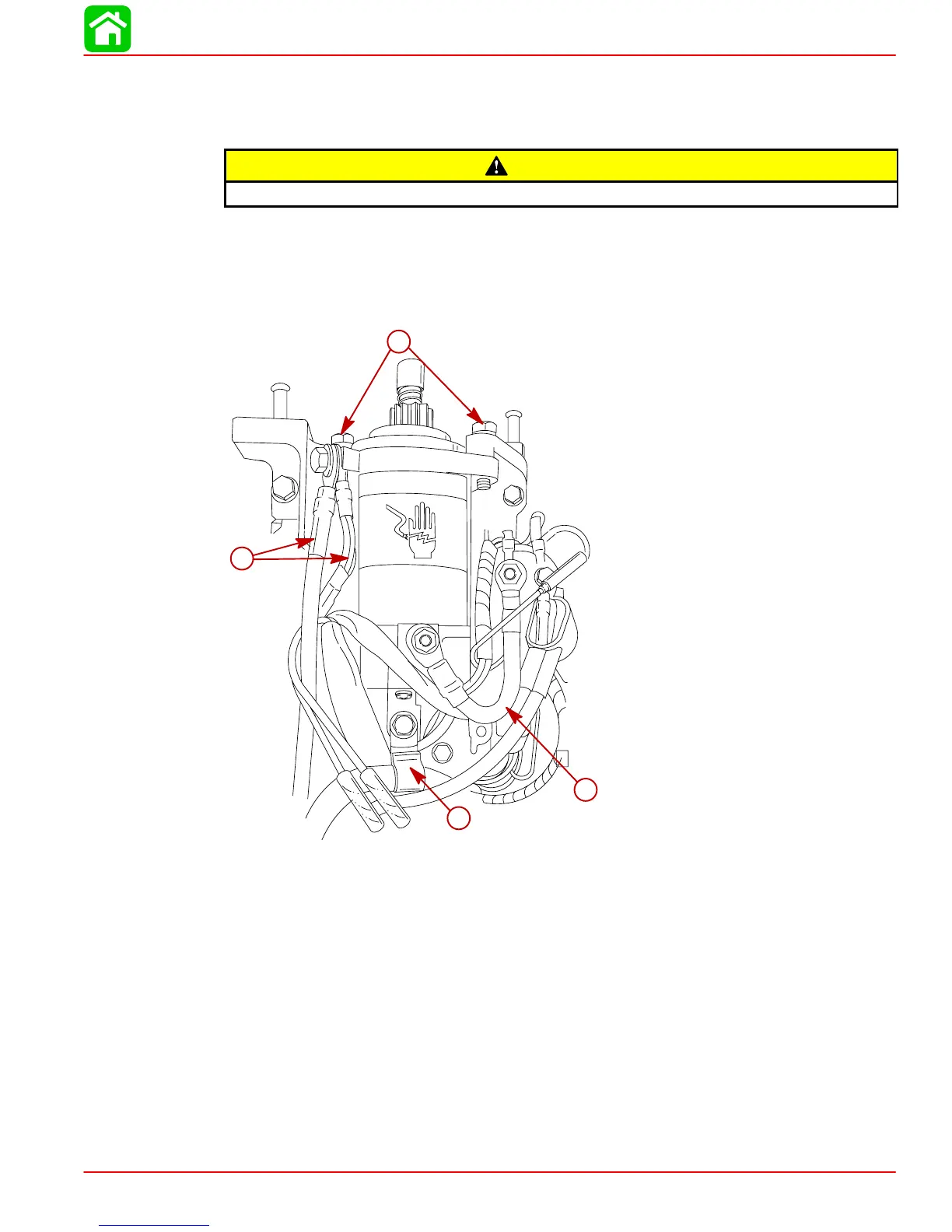

53866
c
b
a
d
a-
Y
ellow Cable
b-
Mounting Bolts
c-
Ground Cables
d-
J Clamp
103
105
