OUTBOARD MOTOR INSTALLATION
Page 1D-8 90-828631R3 MARCH 1999

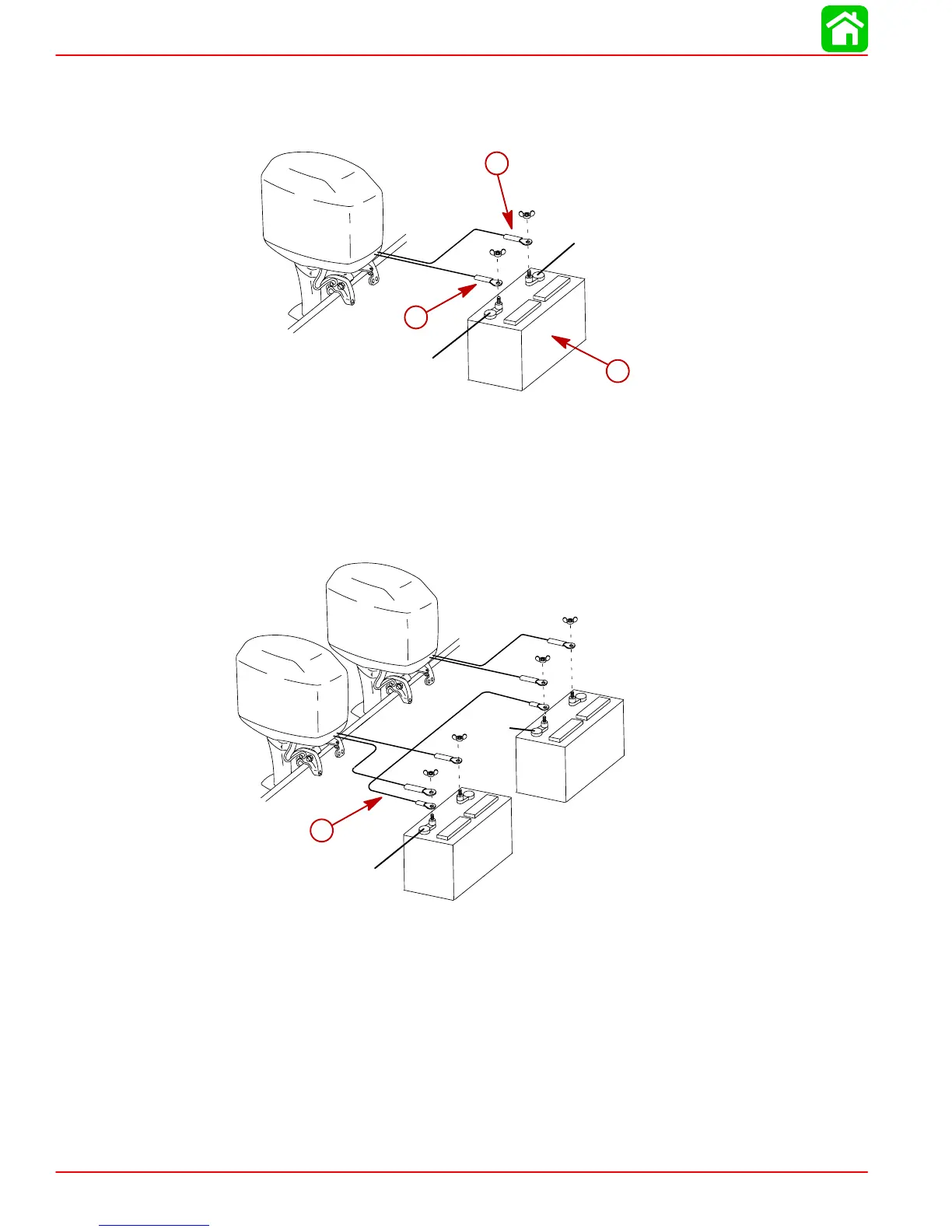

Battery Cable Connections
Single Outboards
(+)
(–)
a
b
c
a-Red Sleeve (Positive)
b-Black Sleeve (Negative)
c-Starting Battery
Dual outboards
1. Connect a common ground cable (wire size same as engine battery cables) between
negative (–) terminals on starting batteries.
(–)
(–)
a
a-Ground Cable (Same Wire Size As Engine Battery Cable) – Connect Between
Negative (–) Terminals
