OUTBOARD MOTOR INSTALLATION
90-828631R3 MARCH 1999 Page 1D-13

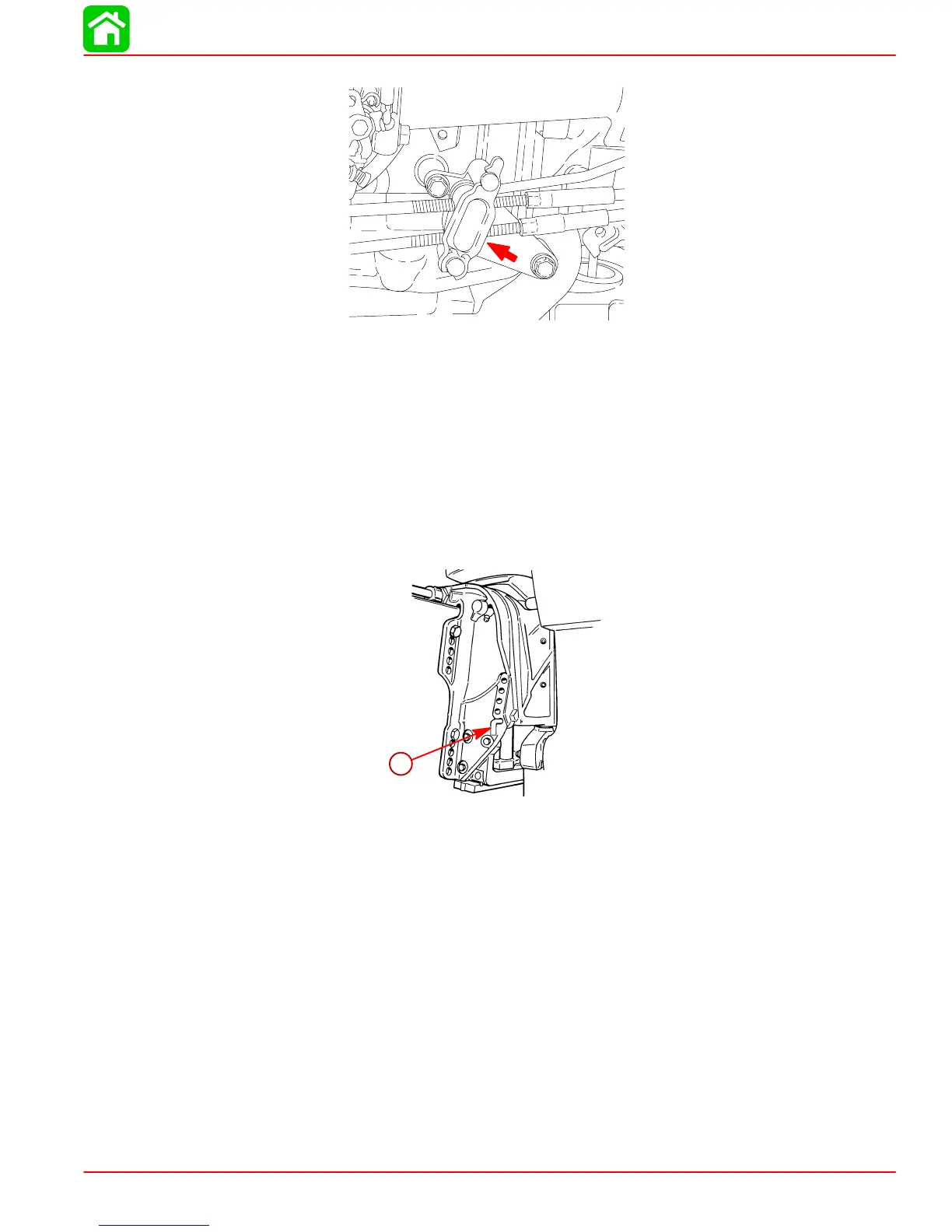

6. Fasten control cables with the cable latch.
IMPORTANT: After installation, move the remote control handle a few times from the
neutral position to the wide-open-throttle position in forward gear. Move handle back
to neutral and repeat Step 6. Visually Check for the specified gap between the oval
shaped boss and the throttle cam. If necessary, readjust the barrel.
Trim-In Stop Adjustment – Power Trim Models
If an adjustment is required, purchase a stainless steel tilt pin (P/N 17-49930A1) and insert
it through whatever pin hole is desired. The non-stainless steel shipping bolt should not be
used in this application other than on a temporary basis.
a
a-Tilt Pin
Trim Tab Adjustment
The trim tab can be adjusted within limits to help compensate for steering torque.
Adjust trim tab as follows:
• If boat tends to pull to the right, move the rear edge of the trim tab to the right.
