POWER TRIM
90-828631R3 MARCH 1999 Page 5B-31

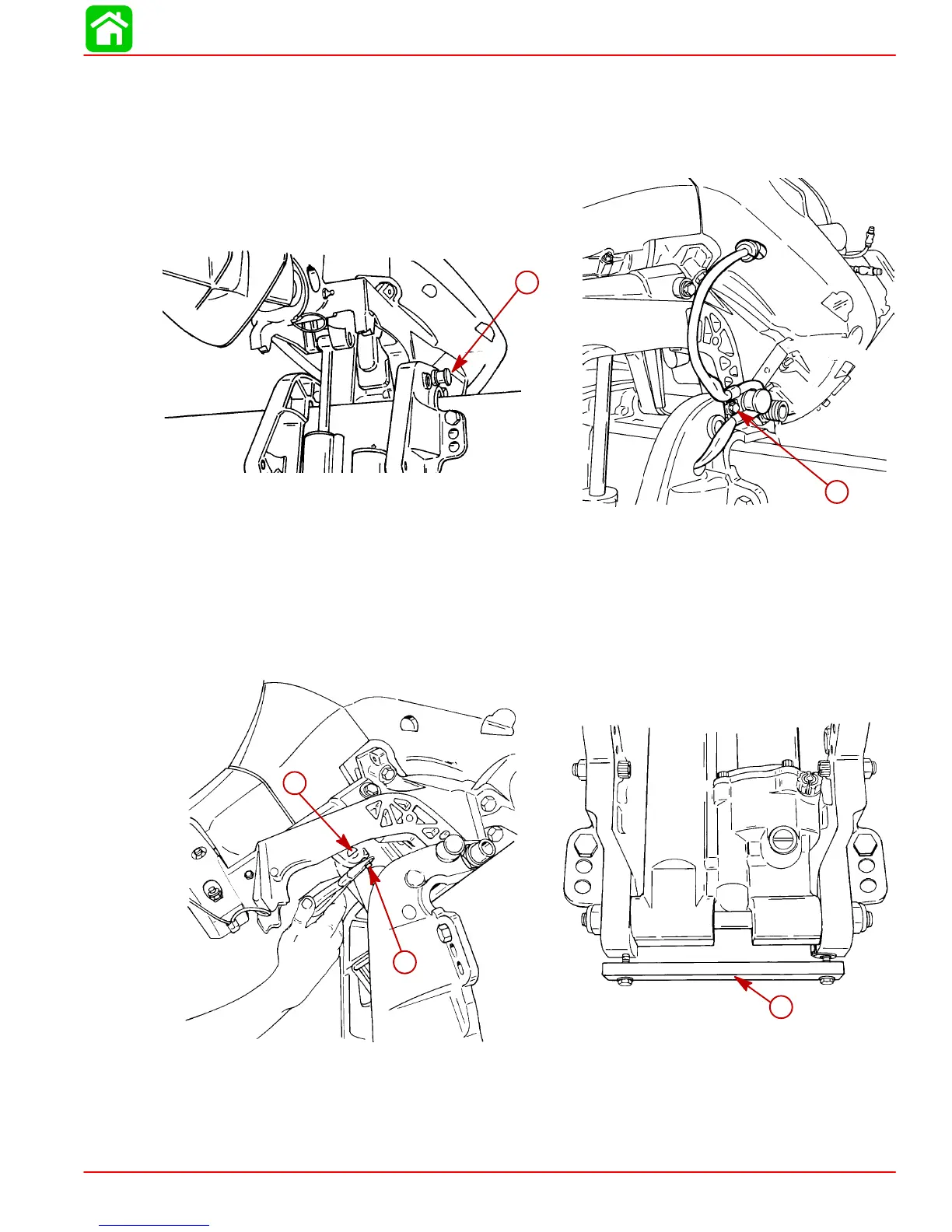

Power Trim System Removal
1. Tilt outboard to the full up position and support with tilt lock pin.
2. Disconnect the power trim wire harness and remove clamps.
b
a
a
b
a-Tilt Lock Pin
b-Power Trim Wire Harness Clamps
3. Remove the trilobe pin.
4. Drive out the upper pivot pin.
5. Remove the sacrificial anode.
c
a
b
a
b
c
a-Trilobe Pin
b-Upper Pivot Pin
c-Sacrificial Anode
