IGNITION
Page 2A-18
90-828631R3 MARCH 1999
SP

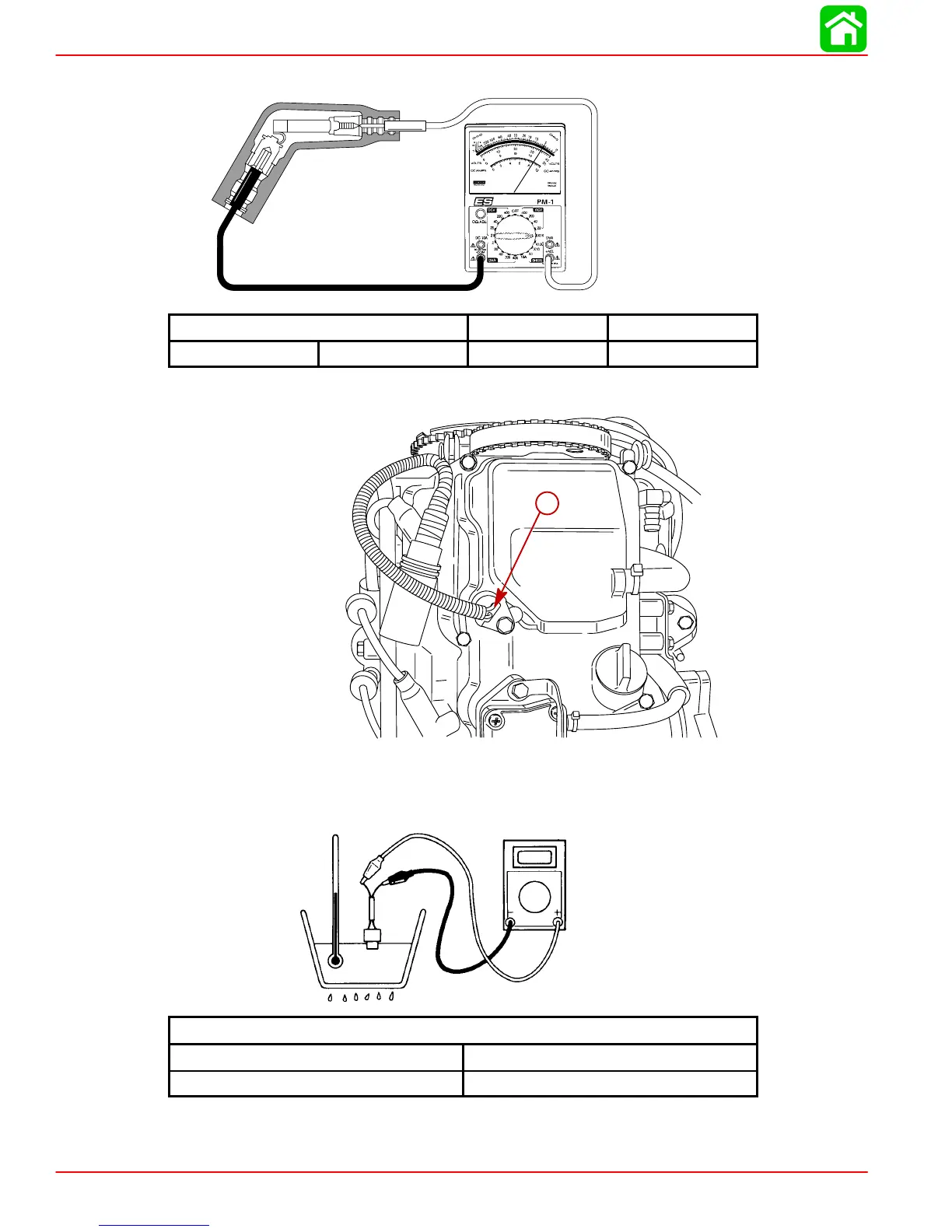

ARK PLUG CAP RESISTOR TEST
55853
METER TEST LEADS
METER SCALE
OHMS READING
RED
BLACK
RXK
Ω
3.5 - 5.2
THERMO SWITCH
57398
a
a-
Thermo Switch
1.
Check continuity of switch.
Thermo Switch Continuity Check
Above 131
°
F (50
°
C)
No Continuity
Below 104
°
F (40
°
C)
Continuity
78
80
