CARBURETOR
Page 3B-36
90-828631R3 MARCH 1999
Carburetor Unit Installation
NOTE:
Carburetor synchronization/static adjustment is required after rebuilding carbure-
tors. Refer to
beginning of section
for adjustments.
1.

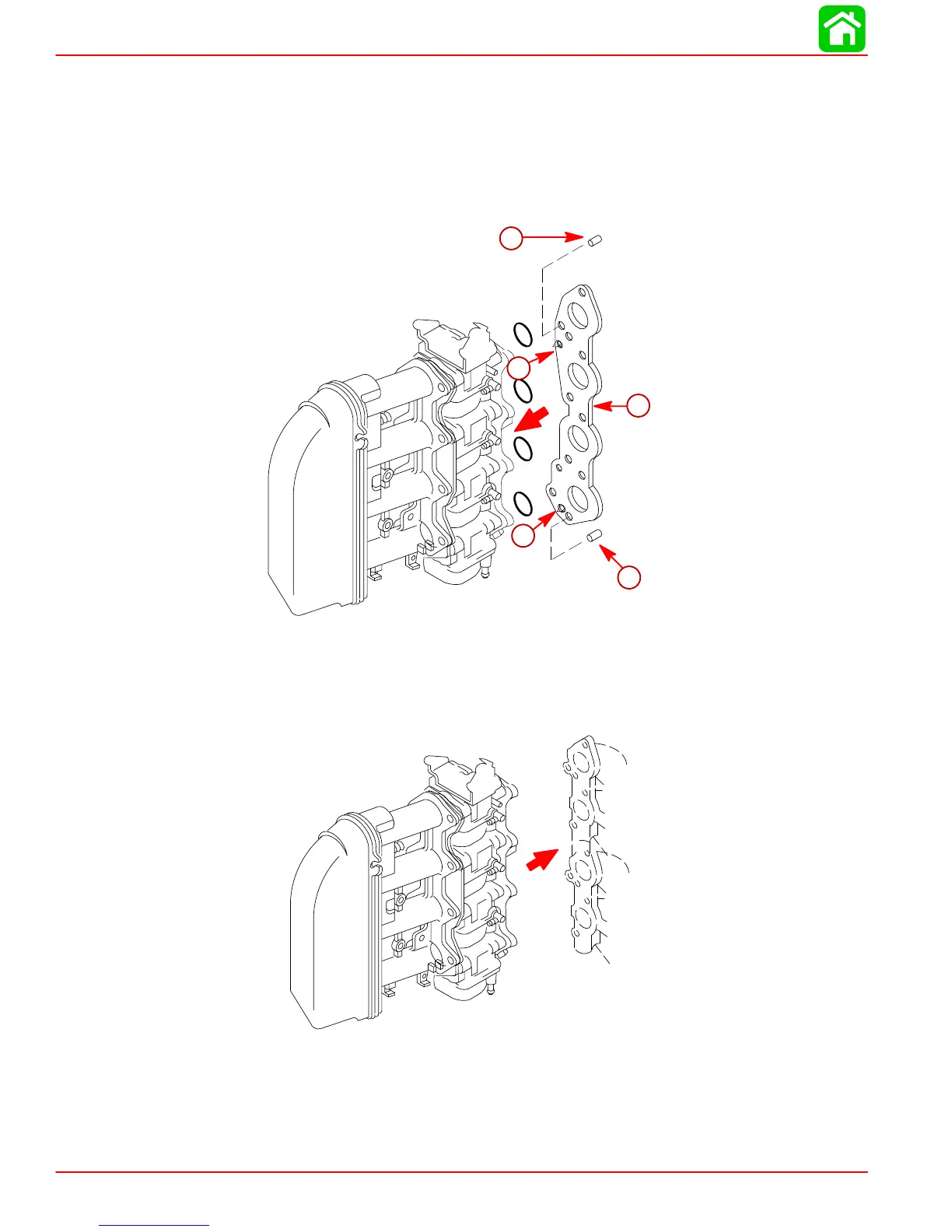

Snap plugs into carburetor to secure insulator
.
2.
Install dowel pins.
53679
a
b
c
a
c
a-
Dowel Pin (2)
b-
Insulator
c-
Plug (2)
3.
Install carburetor unit to intake manifold.
53679
186
188
