FUEL PUMP
Page 3A-8
90-828631R3 MARCH 1999

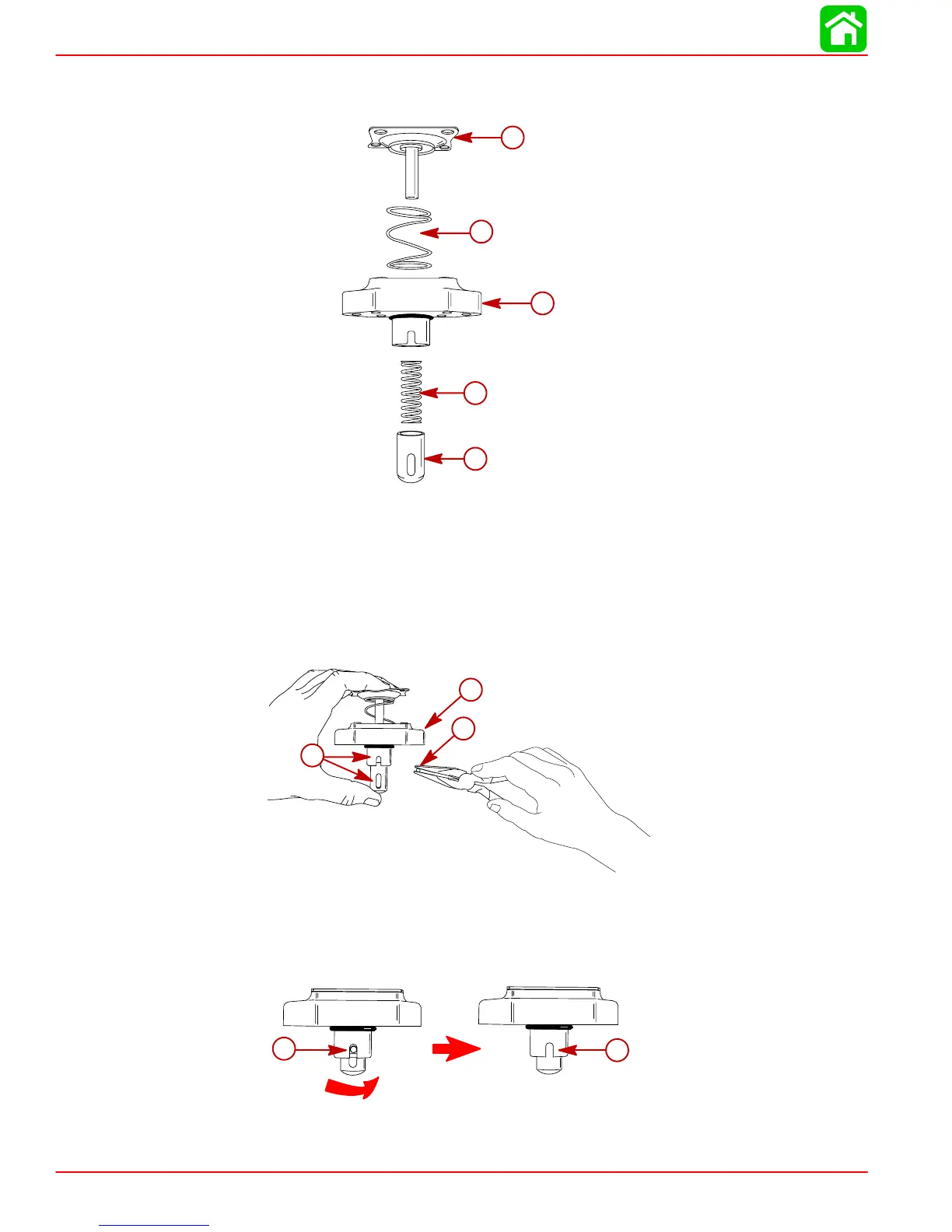

Fuel Pump Reassembly
1.
Assemble springs, diaphragm, and plunger onto pump body
.
a
b
c
d
e
a-
Diaphragm
b-
Diaphragm Spring
c-
Pump Body
d-
Spring
e-
Plunger
2.
Line up slots and compress assembly
.
3.
Insert pin into hole.
a
b
c
a-
Pump Body
b-
Slots
c-
Pin
4.
Rotate plunger 90
°
to offset slots.
53615
a
b
a-
Slots Aligned
b-
Slots Offset
