CHARGING AND ST
ARTING SYSTEM
90-828631R3 MARCH 1999
Page 2B-25
Installation
1.
T
ighten mounting bolts to specified torque. Connect yellow cable and J-clamp with bot-
tom bolt.
2.
Reconnect the ground cables.

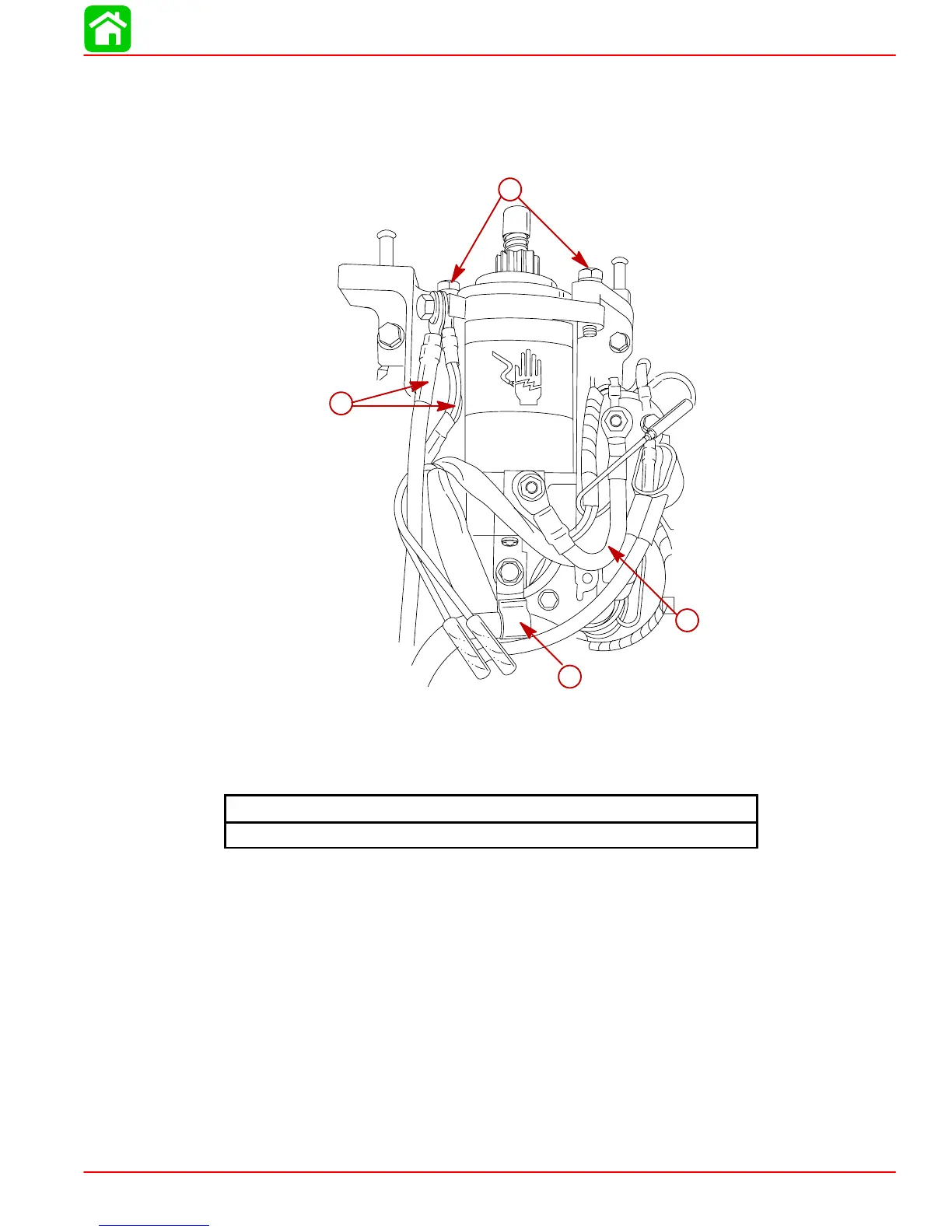

53866
c
d
b
a
a-
Y
ellow Cable
b-
Mounting Bolts
c-
Ground Cables
d-
J Clamp
Starter Motor Mounting Bolt T
orque
22.7 lb-ft (30.8 Nm)
