CHARGING AND ST
ARTING SYSTEM
Page 2B-26
90-828631R3 MARCH 1999
Starter Motor P/N 50-834749 (Side Mounted)
Removal
W
ARNING
Always disconnect the
battery and remove spark plug leads from spark plugs be-
fore working on motor
.
1.
Disconnect battery leads from battery
.
2.
Disconnect BLACK cable.
3.
Remove 3 bolts.
4.
Remove starter
.

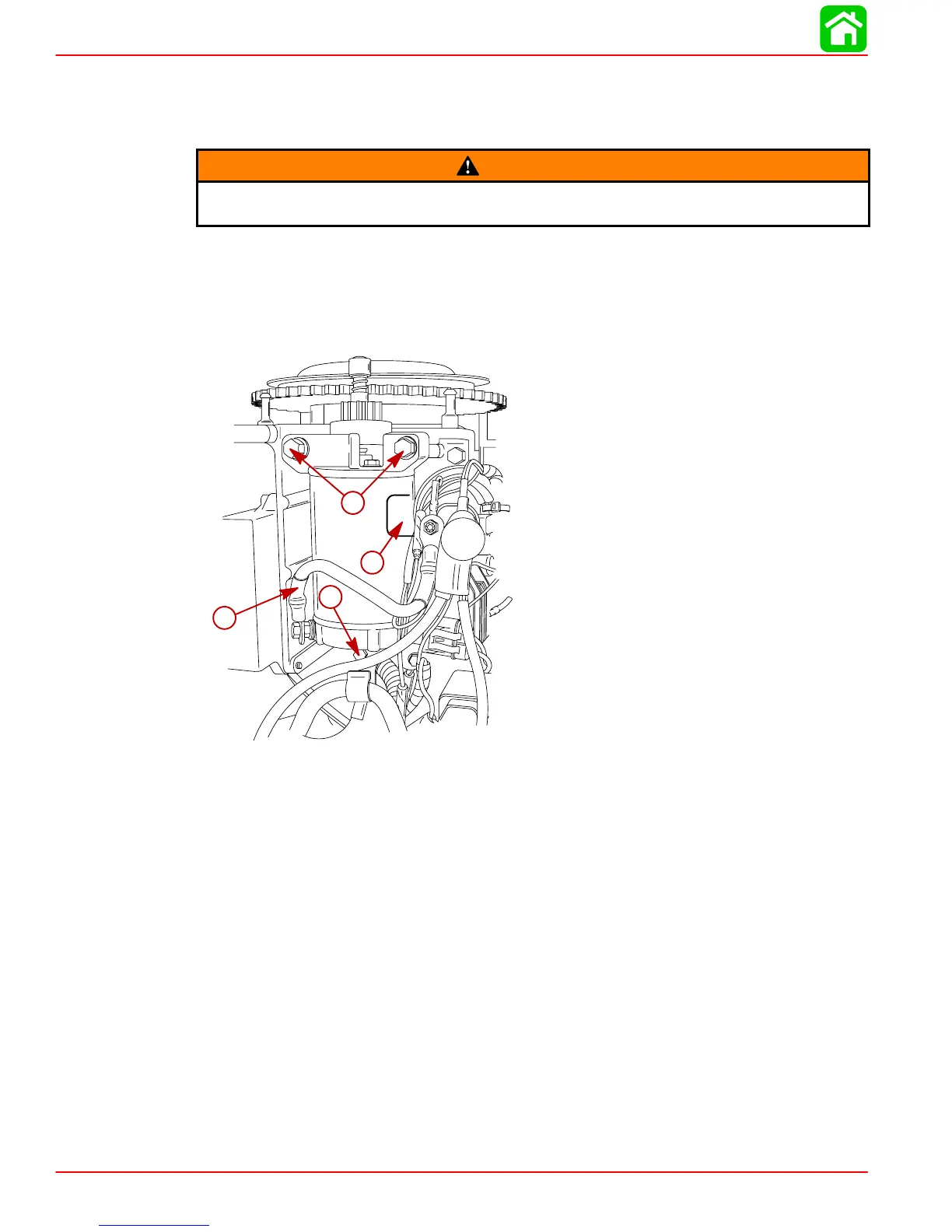

55626
50-
a
c
b
b
a-
Black Cable
b-
Bolts (3)
c-
Part Number Location
