MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-21

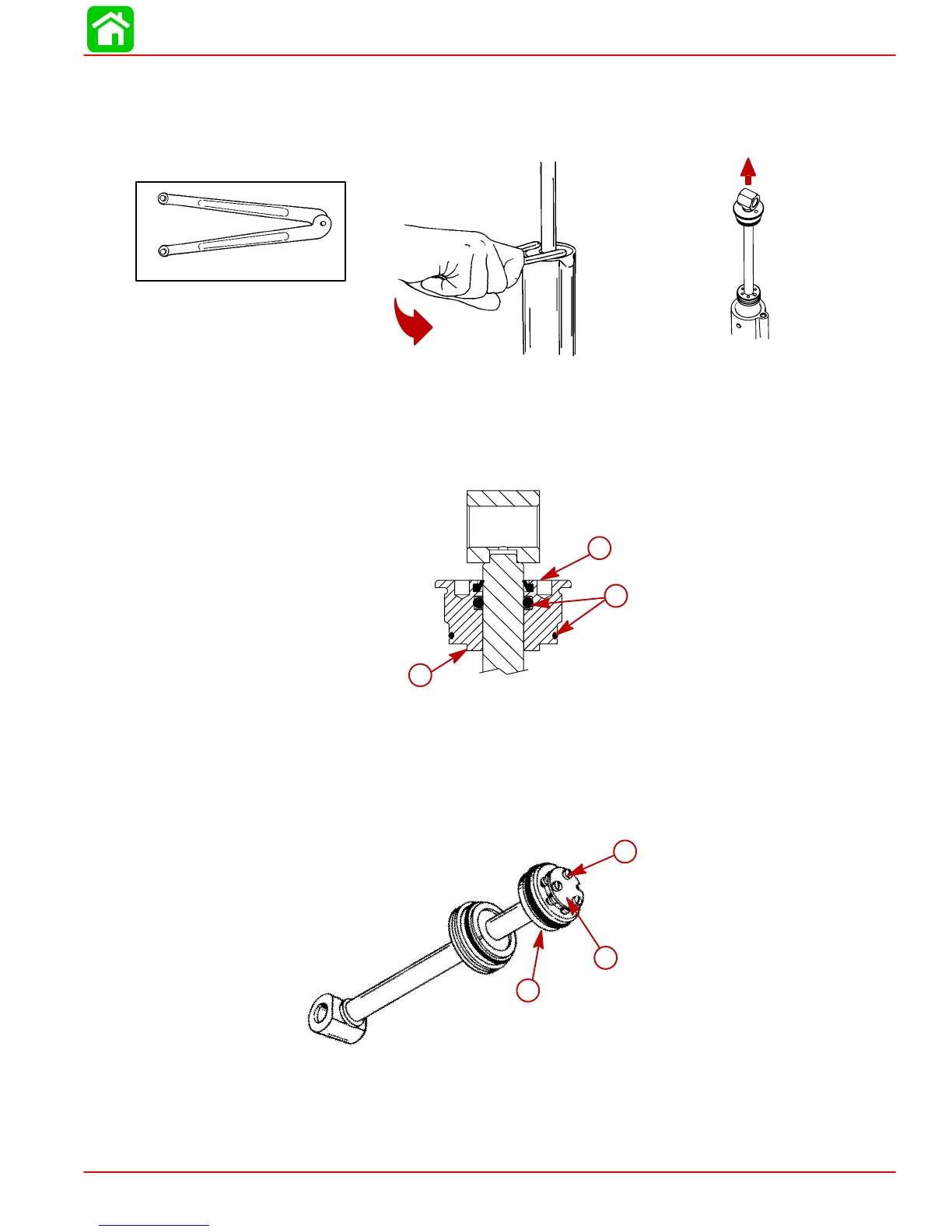

Shock Rod Removal
1. Unscrew cylinder end cap assembly using spanner wrench [1/4 in. x 5/16 in. long pegs].
2. Remove shock rod assembly from cylinder.
51145
91-74951
Shock Rod Disassembly
NOTE: The only serviceable items on the shock rod assembly are the O-rings and wiper
ring. If shock rod requires any other repair, replace shock rod assembly.
b
c
a
a-End Cap
b-O-ring (2)
c-Wiper Ring
1. Place shock rod assembly on clean work surface.
2. Remove three (3) screws and remove plate from shock rod piston.
51143
a
b
c
a-Screw (3)
b-Plate
c-Shock Rod Piston
