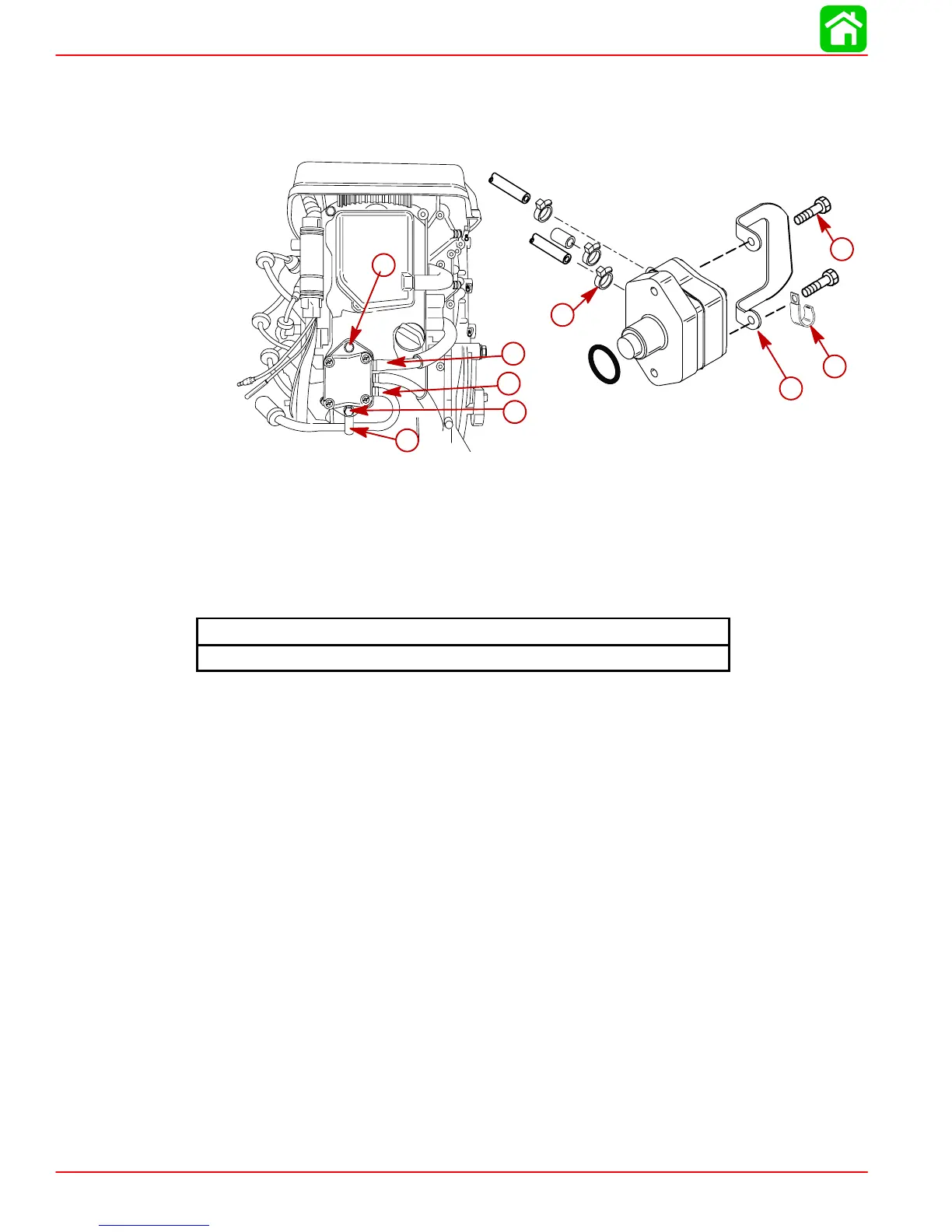

FUEL PUMP
Page 3A-10
90-828631R3 MARCH 1999
Fuel Pump Installation
1.
Secure fuel pump and cowl deflector to cylinder head cover with 2 bolts.
2.
Connect fuel lines to pump and secure with sta-straps.
d
e
d
out
out
in
c
a
b
c
e
f
a-
Outlet Fuel Hose
b-
Inlet Fuel Hose
c-
Mounting Bolts (2)-M6x30
d-
Cowl Deflector
e-
J-Clip
f-
Cable T
ies (3)
Fuel Pump Mounting Bolt T
orque
75 lb-in. (8.5 Nm)
150
152
