90-828631R3 MARCH 1999
Page 1D-1
1

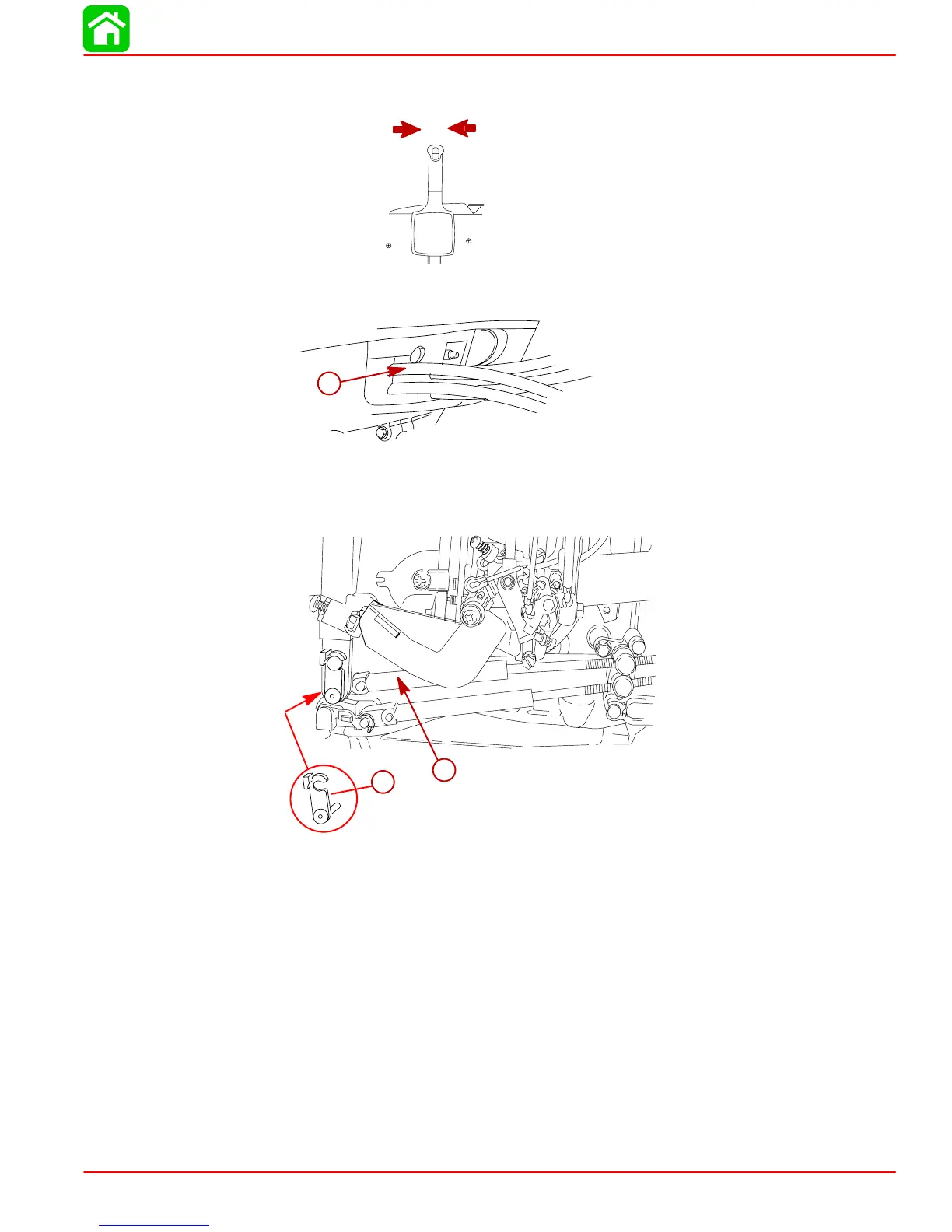

45-50 hp - Throttle Cable Installation
1.
Position remote control into neutral.
N
2.
Fit throttle cable through rubber grommet.
a
a-
Throttle Cable
3.
Install throttle cable with retainer pin. Lock retainer pin in place.
a
b
a-
Throttle Cable
b-
Retainer Pin
