POWER TRIM
90-828631R3 MARCH 1999 Page 5B-33
4. Secure power trim assembly in a soft jaw vise.
5. Unscrew end cap assembly from cylinder using spanner wrench 91-74951.
6. Remove shock rod assembly from cylinder.
91-74951
Shock Rod Disassembly
NOTE: The only serviceable items on the shock rod assembly are the O-rings and wiper
ring. If shock rod requires any other repair, replace shock rod assembly.
a
d
c
c
b
c
c
a
b
c
c c
c
d
a-End Cap
b-Shock Piston
c-O-ring
d-Wiper Ring

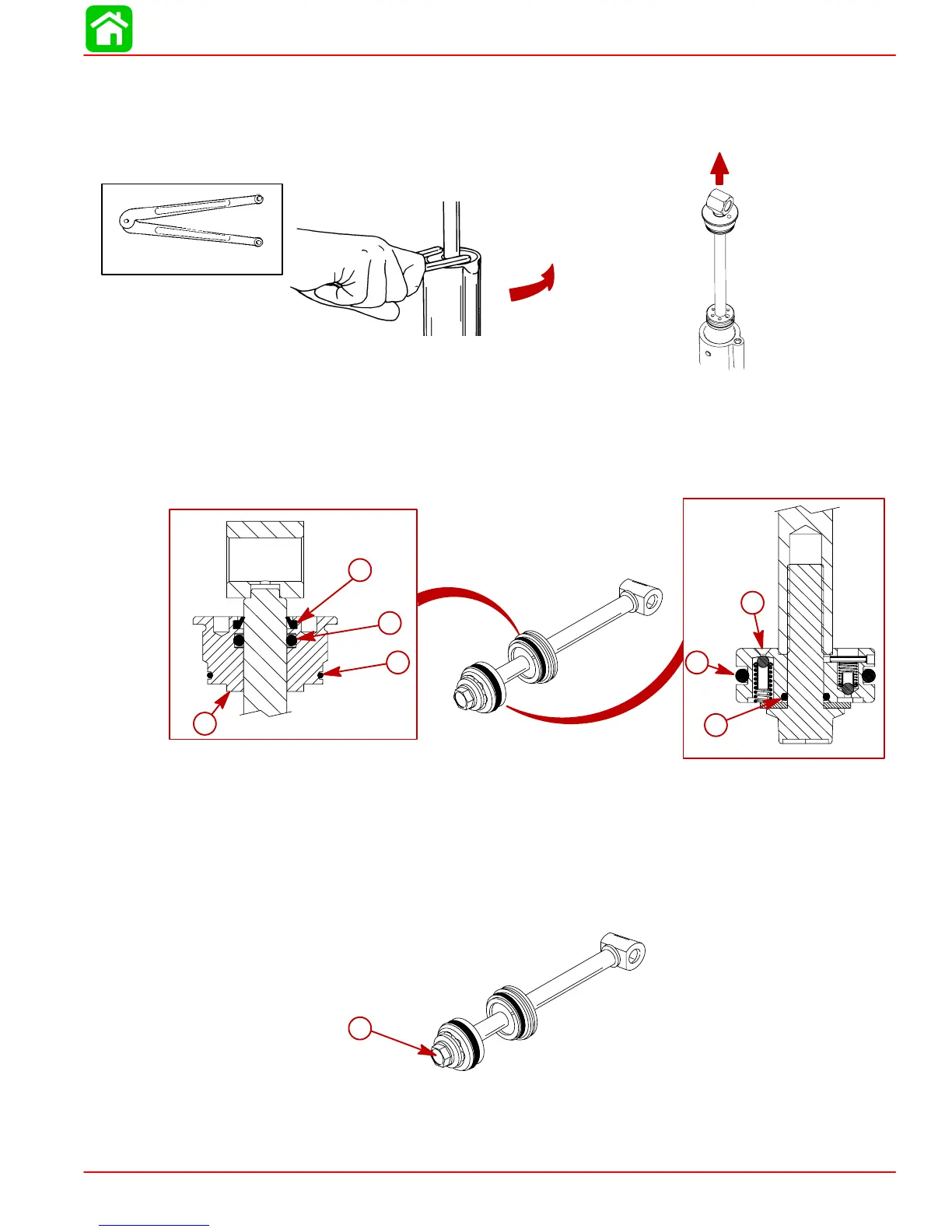

1. Place shock rod assembly on clean work surface.
2. Remove bolt from end of shock rod.
a
a
a-Bolt
