POWER TRIM
90-828631R3 MARCH 1999
Page 5C-29
Power T

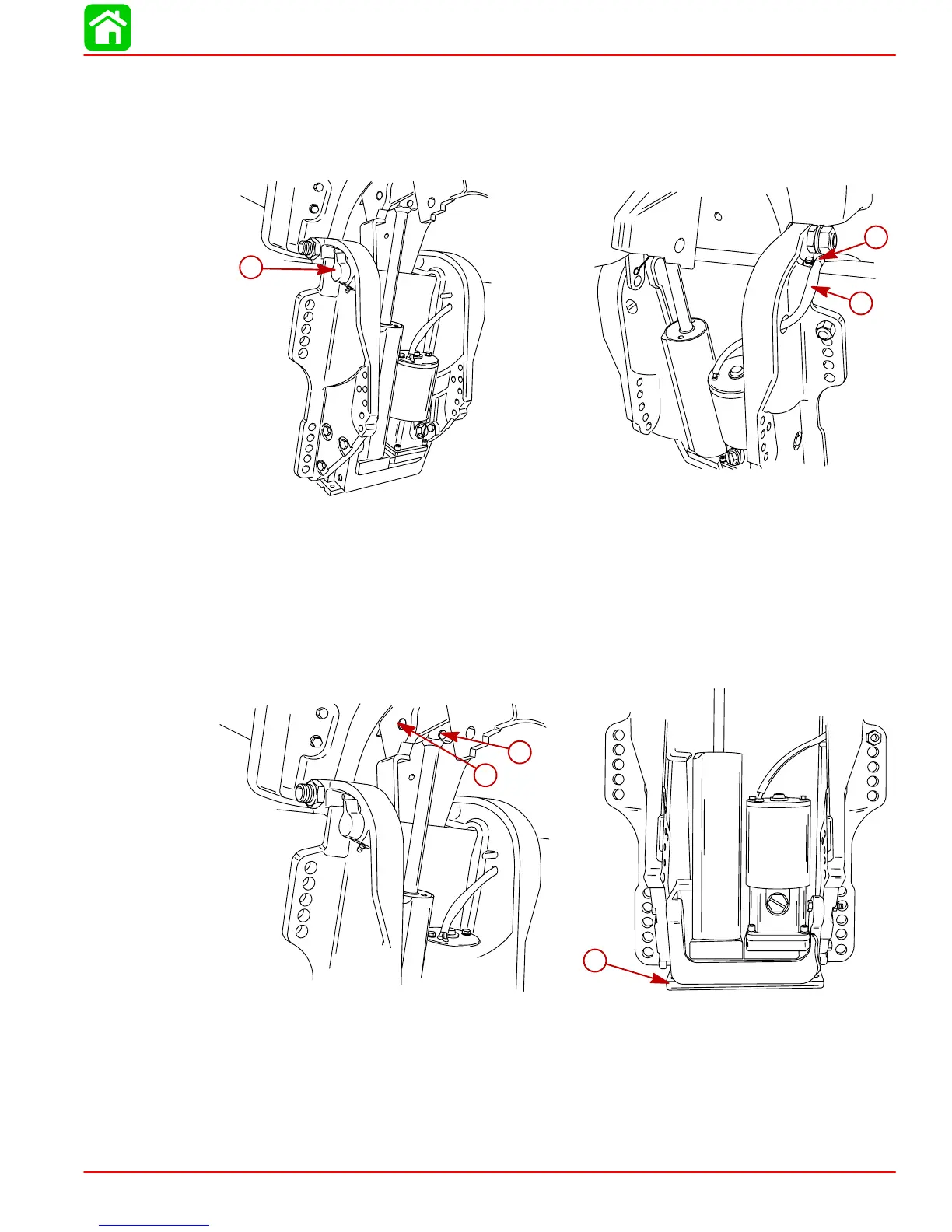

rim System Removal
1.
T
ilt outboard to the full up position and support with tilt lock pin.
2.
Disconnect the power trim wire harness and remove clamp.
55264
b
c
55464
a
a-
T
ilt Lock Pin
b-
Power T
rim Wire Harness Clamp
c-
Harness
3.
Remove the trilobe pin.
4.
Drive out the upper pivot pin.
5.
Remove the sacrificial anode.
55331
c
b
a
a-
T
rilobe Pin
b-
Upper Pivot Pin
c-
Sacrificial Anode
