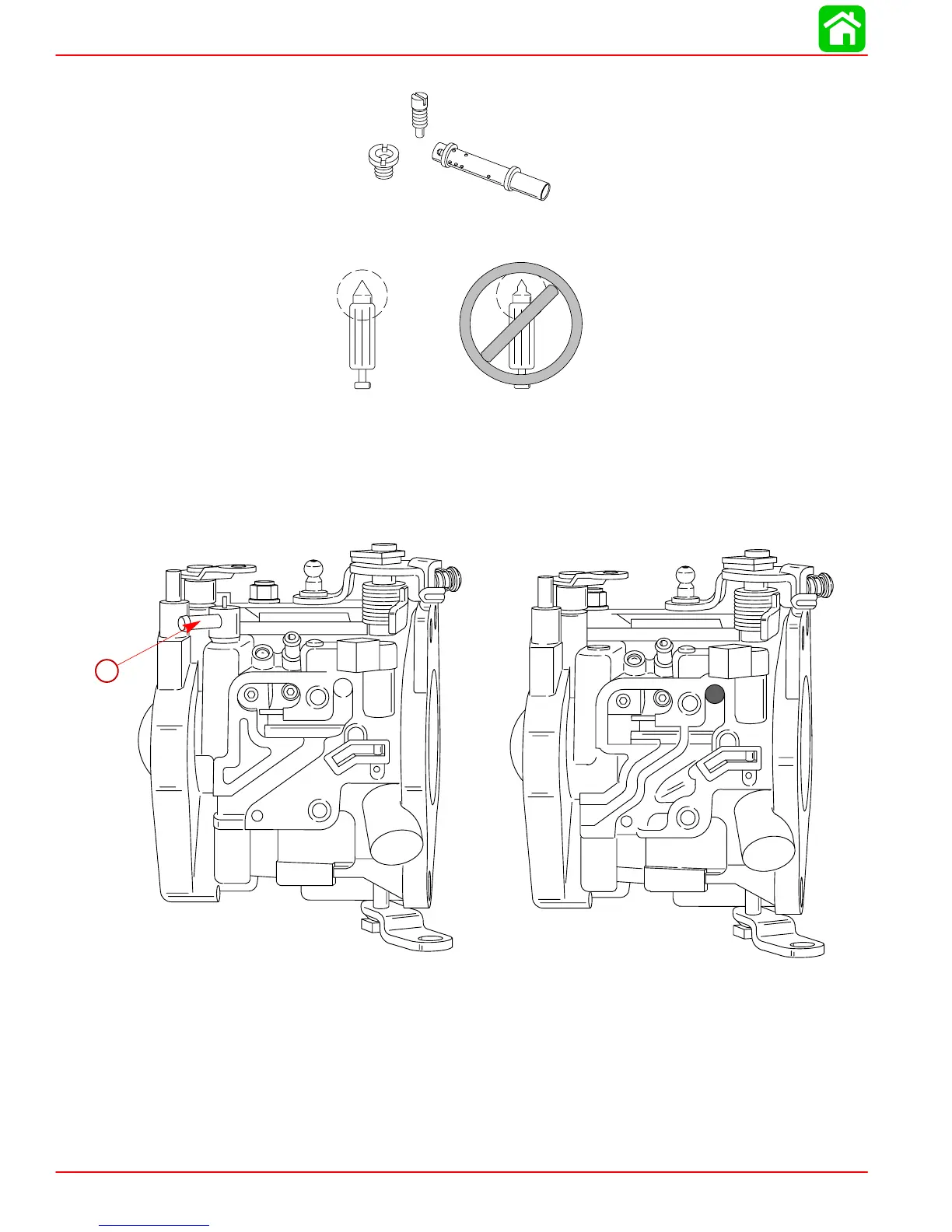

CARBURETOR
Page 3B-28
90-828631R3 MARCH 1999
4.
Inspect main jet, pilot jet and main nozzle. Clean if they are contaminated.
53672
5.
Inspect needle valve, replace if end is worn or grooved.
28375
Carburetor Assembly
NOTE:
Note different carburetor design from old style to new style for top carburetor (#1).
New style does not have breather port.
a
Old Style
New Style
a-
Breather Port
178
