CYLINDER BLOCK/CRANKCASE
Page 4B-1
1
90-828631R3 MARCH 1999

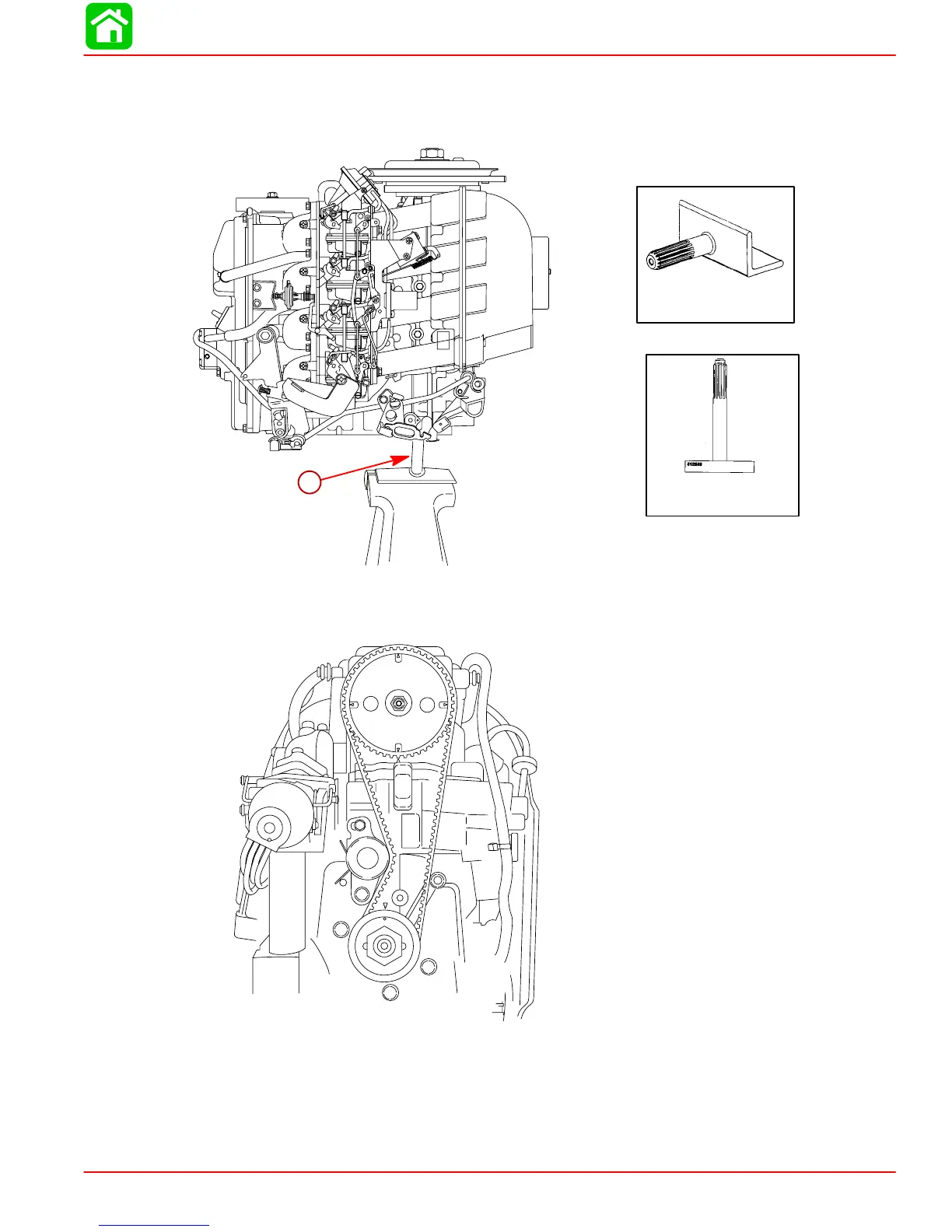

Removing Powerhead Components
1.
Place powerhead on Powerhead Stand.
a
91-827001A1
91-812549
a-
Powerhead Stand (91-827001A1-Non-Bigfoot) (91-812549-Bigfoot)
2.
Remove flywheel, stator
, trigger base, and timing belt. Refer to Section 4 Part A.
30033
1
4
2
3
251
