THROTTLE/SHIFT LINKAGE
90-828631R3 MARCH 1999 Page 7A-7
Throttle Cable Installation
NOTE: Attach Shift cable to engine prior to attaching throttle cable.
1. Position the remote control handle into neutral detent.
2. Fit the throttle cable thru the front rubber grommet and into the bottom cowl.
3. Install the throttle cable to the throttle lever with retainer pin. Lock retainer pin in place.

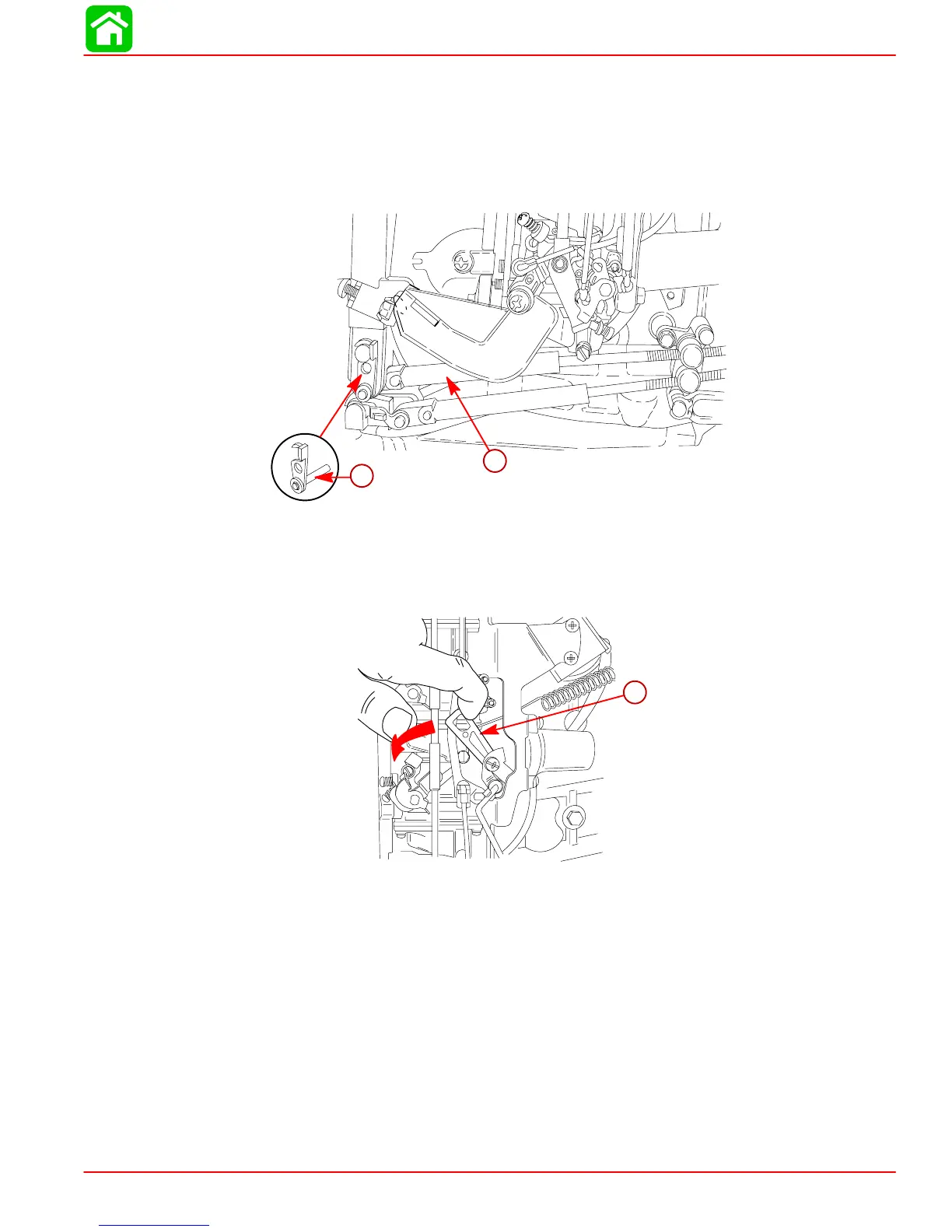

b
a
a-Throttle Cable
b-Retainer Pin
4. Move the throttle linkage arm down.
a
a-Throttle Linkage
