CARBURETOR
90-828631R3 MARCH 1999
Page 3B-35

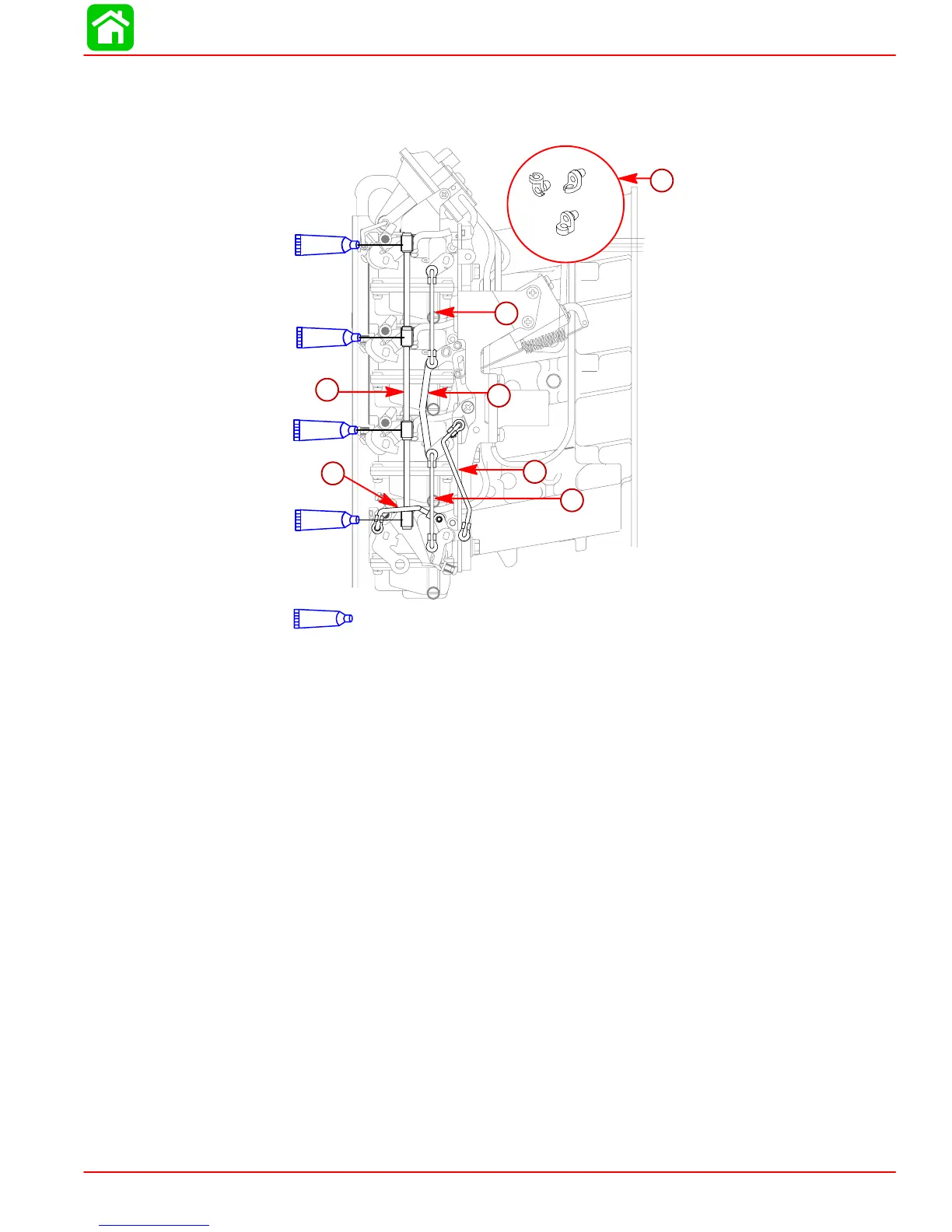

Carburetor Link Installation
1.
Snap links onto retainer clips. Apply a light oil to link balls.
28378
14
14
4 Cycle Outboard Oil (92-828000A1)
14
14
14
g
b
c
f
a
e
d
a-
Upper Choke Link-“C” Link
b-
Lower Choke Link-“J” Link
c-
Auto Choke Link-“Z” Link
d-
Unloader Link-Small “J” Link
e-
Throttle Link
f-
Joint Plate
g-
Retainer Clips
