CARBURETOR
Page 3B-18
90-828631R3 MARCH 1999

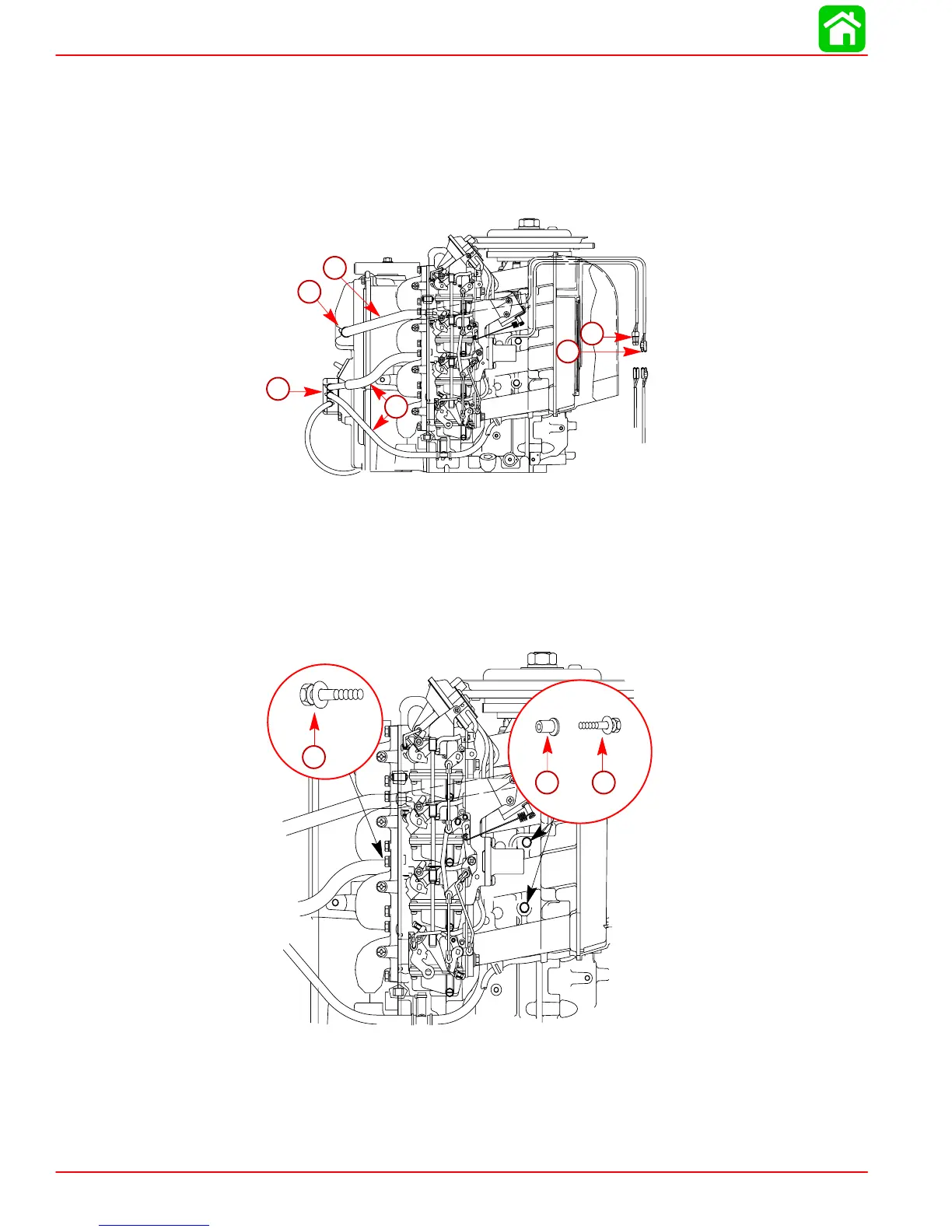

Carburetor Unit Removal
1.
Remove fuel line sta-straps.
2.
Disconnect fuel lines and breather hose.
3.
Disconnect solenoid and plunger leads.
28379
a
b
c
d
e
a
a-
Sta-Straps (3)
b-
Breather Hose
c-
Fuel Lines (2)
d-
Solenoid Leads (Blue, Black)
e-
Plunger Leads (Green/White, Black)
4.
Remove bolts and collars.
28379
a
b
c
a-
Bolt
w/W
asher-M6x30 mm (2)
b-
Collar (2)
c-
Mounting Bolt w/W
asher-M6x25 mm (8)
168
170
