CARBURETOR
Page 3B-22
90-828631R3 MARCH 1999

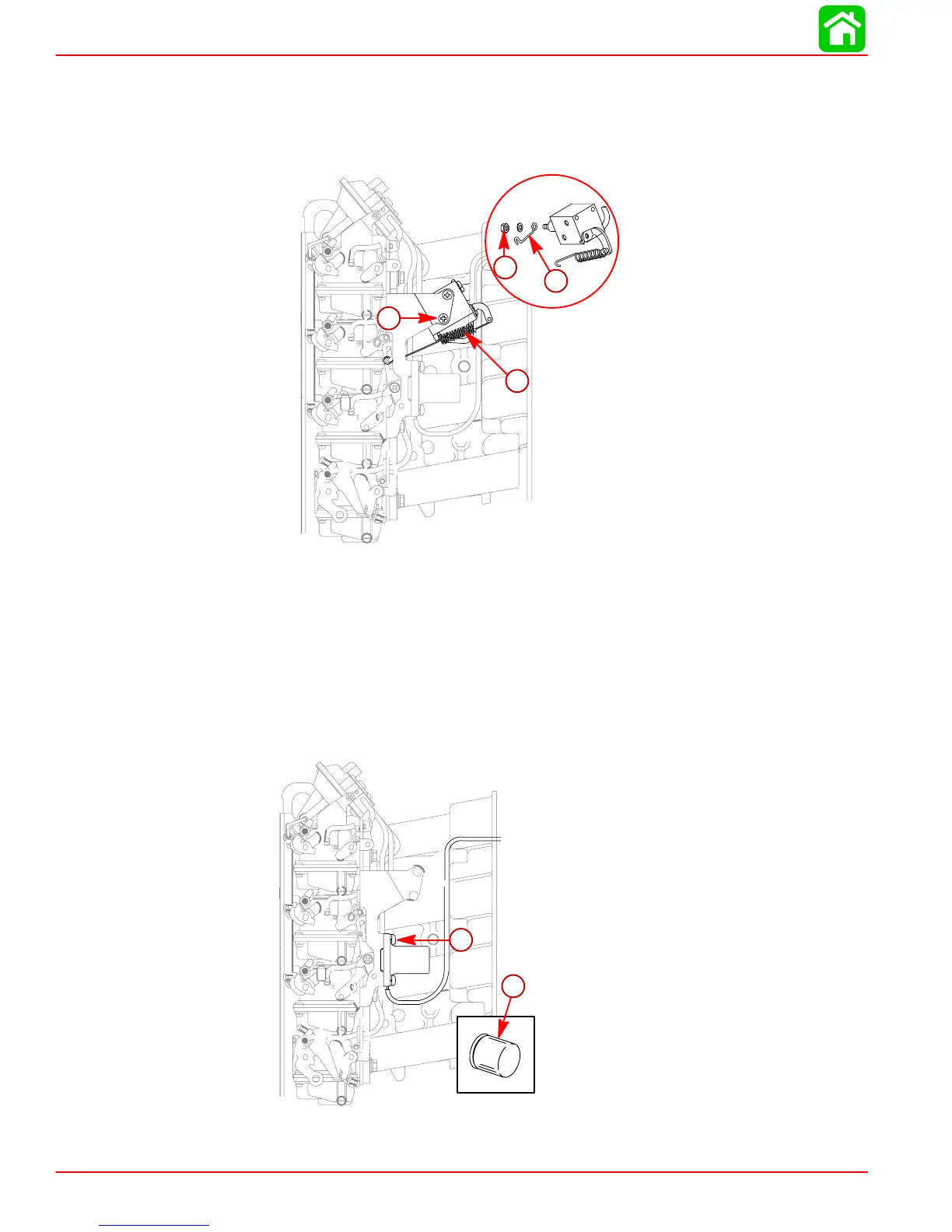

Solenoid Coil
1.
Unhook spring and remove screws.
2.
Loosen locknut to free wire pull from coil assembly
.
28379
a
b
c
d
a-
Spring
b-
Screw (2)
c-
Lock Nut
d-
Wire Pull
Electrothermal Plunger Removal
1.
Remove cover (if so equipped).
2.
Remove screws.
28379
a
b
a-
Cover
b-
Screw (2)
172
174
