IGNITION
90-828631R3 MARCH 1999
Page 2A-23
Ignition Coil Removal and Installation
1.

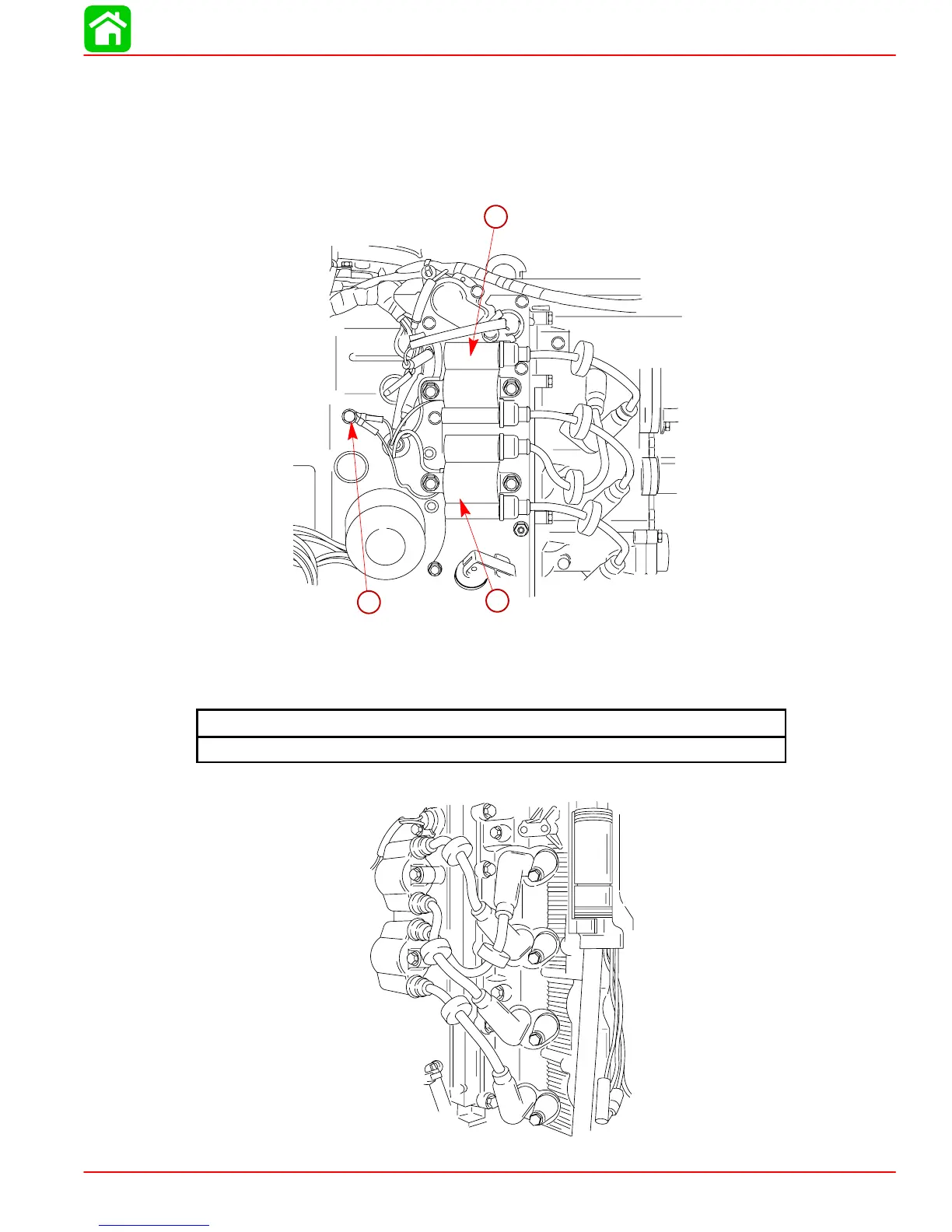

Remove and install ignition coils as shown.
2.
Refer to Section 2 Part D for wiring diagrams.
28342
1
2
3
4
a
b
c
a-
T
op Ignition Coil
b-
Bottom Ignition Coil
c-
Bolt - Fasten (and Ground) Coil Ground Leads
Ignition Coil Mounting Bolt T
orque
75 lb-in. (8.5 Nm)
3.
Reconnect spark plug leads.
2
3
4
1
1
2
3
4
83
85
