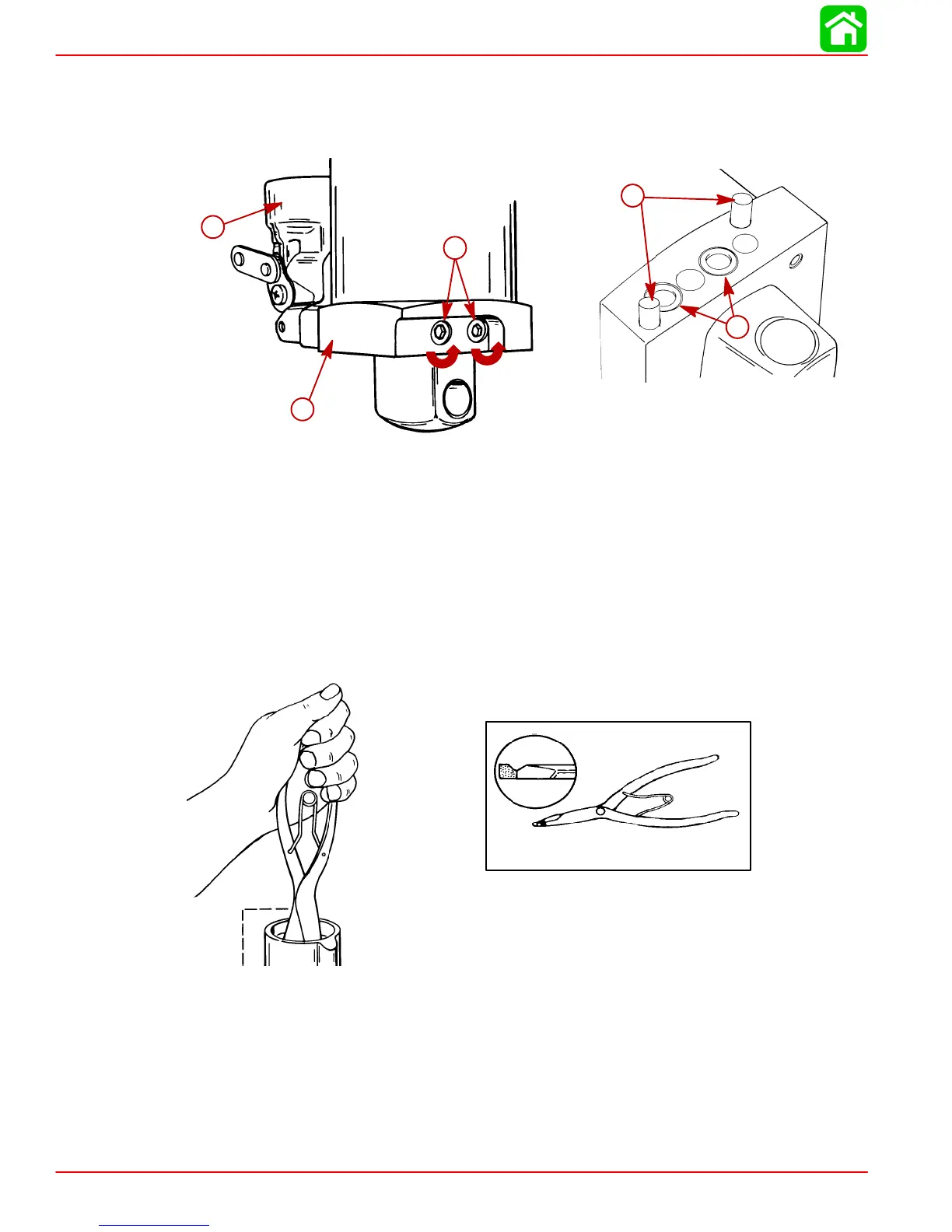

MANUAL TILT ASSIST
Page 5D-24 90-828631R3 MARCH 1999
Valve Block Removal
1. Remove two screws from the shock rod cylinder to separate the valve block.
2. Remove O-rings and dowel pins.
51148
51146
aa
b
c
a
d
e
a-Screw
b-Valve Block
c-Shock Rod Cylinder
d-O-ring (2)
e-Dowel Pin (2)
Memory Piston Removal
1. Remove memory piston from cylinder using one of two methods:
a. Using lock ring pliers P/N SRP-4 (Snap-On) or suitable tool.
SRP-4 (Snap-On)
