CLAMP/SWIVEL
BRACKETS & DRIVESHAFT HOUSING
90-828631R3 MARCH 1999
Page 5A-15

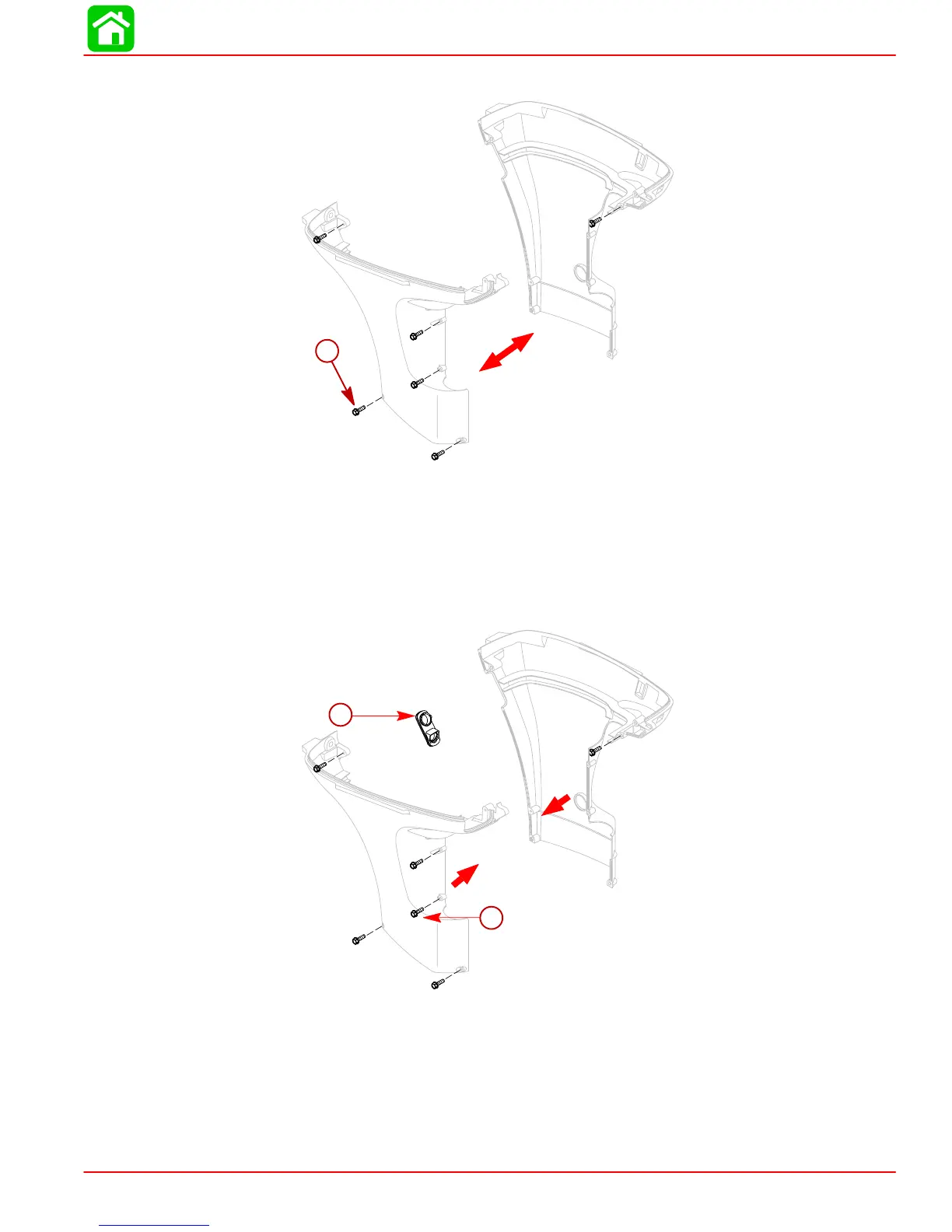

3.
Remove screws holding cowl halves together
.
a
a-
Cowl Screws (6)
Bottom Cowl Installation
1.
Check for proper placement of boot between cowl halves. V
erify trim wires are clear
.
2.
Secure cowl halves together with screws.
a
b
a-
Boot
b-
Screws (6)
304
306
