WIRING DIAGRAMS
Page 2D-8 90-828631R3 MARCH 1999
Remote Wiring Harness Connection to Engine
ELECTRIC START REMOTE CONTROL MODEL

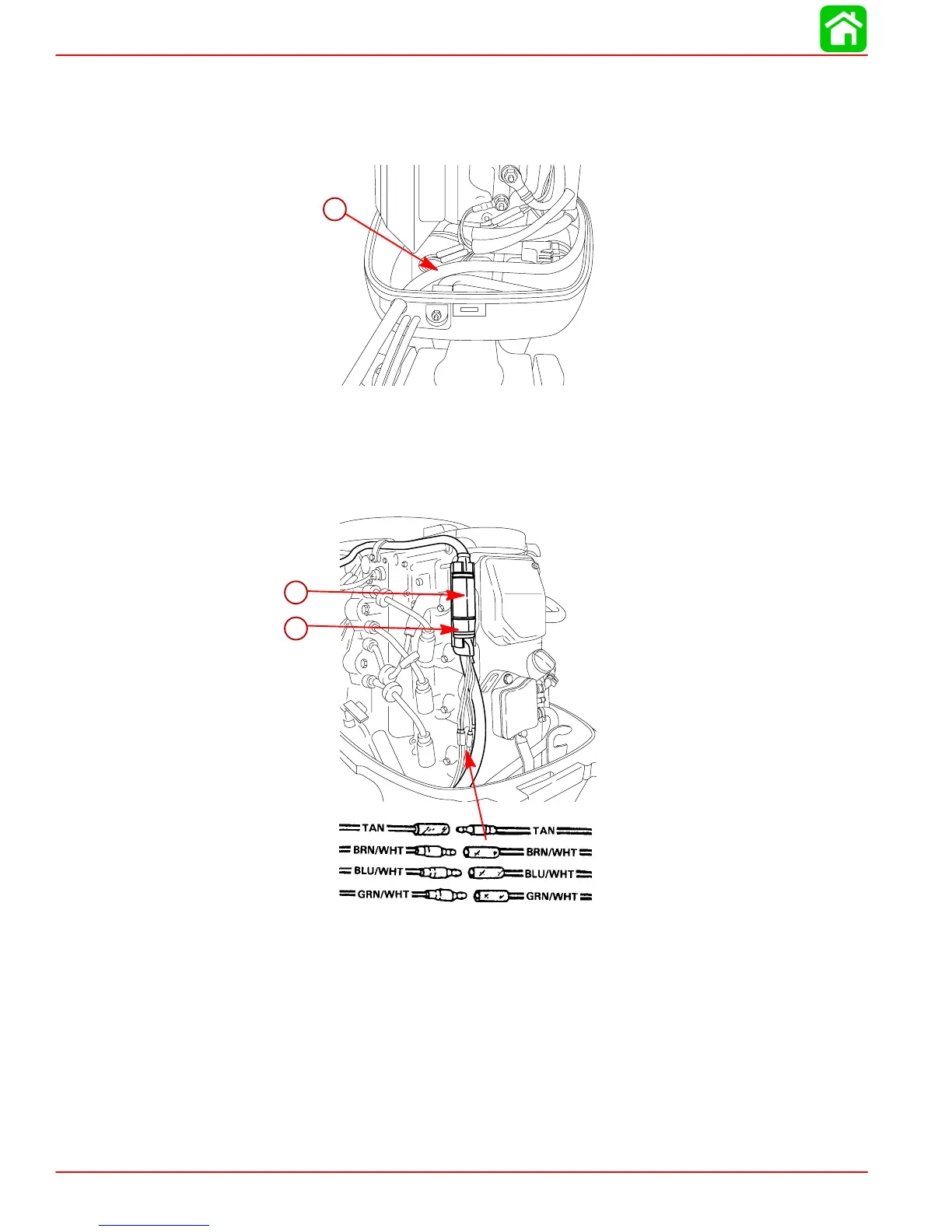

1. Route the remote wiring harness to the back of the engine block as shown.
a
a-Remote Wiring Harness
2. Plug the remote wiring harness into the engine wiring harness connector. Push the har-
ness connection into the holder.
3. Connect additional wires leads (if equipped).
a
b
a-Remote Wiring Harness
b-Engine Wiring Harness Connector
