Mercury 90 Service Manual

2D-8 - ELECTRICAL 90-830234R3 DECEMBER 1997

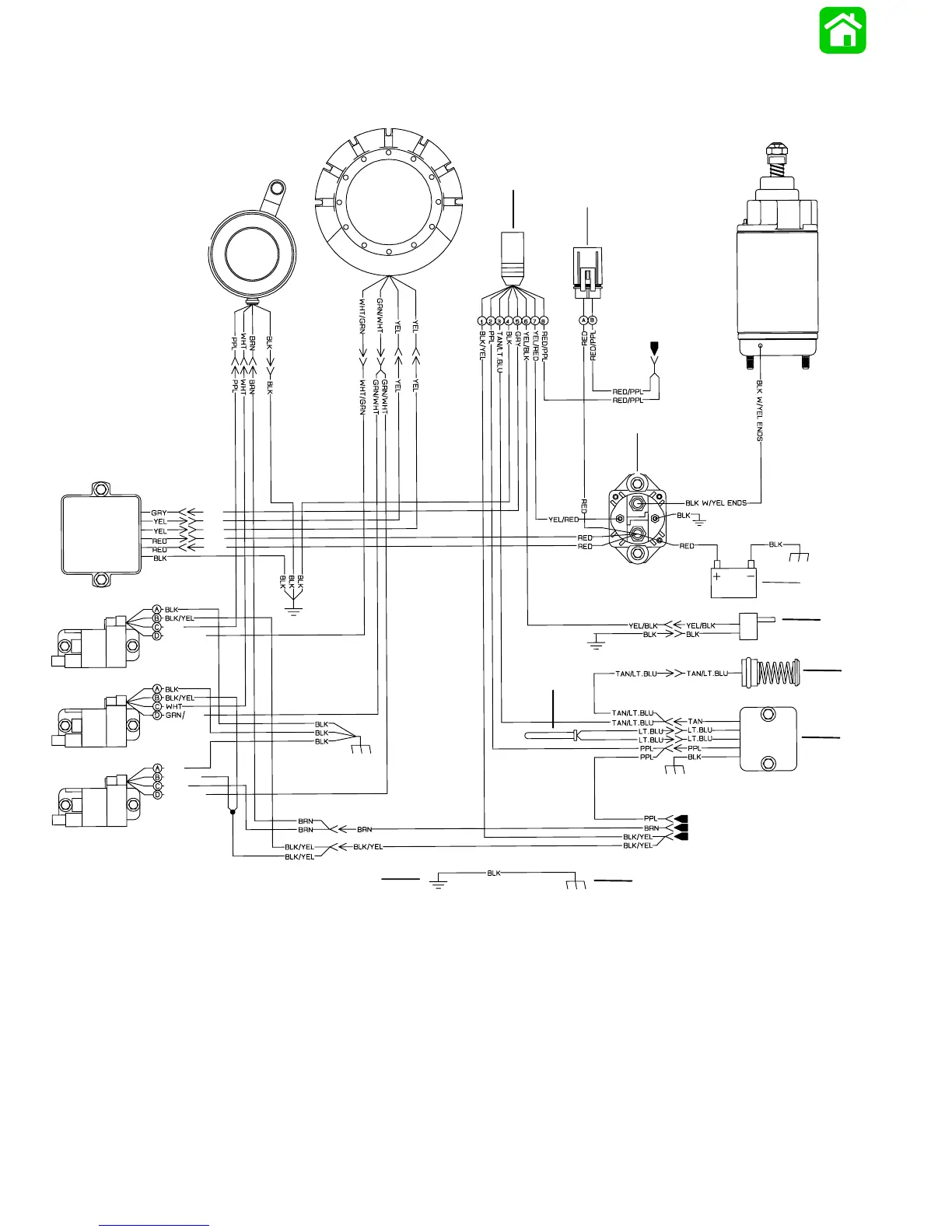

1997 65 Jet Wiring Diagram (w/CDM) (1-2-3 Firing Order)
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
WHT
RED
RED
YEL
GRY
BRN
BLK
BLK/YEL
GRN/WHT
WHT/GRN
PPL
YEL
a - Trigger
b - Stator
c - Remote Control
d - 20 Ampere Fuse
e - Starter
f - Starter Solenoid
g - 12 Volt Battery
h - Fuel Enrichment Solenoid
i - Head Temperature Switch
j - Oil Warning Module
k - Oil Level Switch
l - Engine Block
m- Electrical Plate
n - CDM #3
o - CDM #2
p - CDM #1
q - Voltage Regulator
