7B-16 - ATTACHMENTS/CONTROL LINKAGE 90-830234R3 DECEMBER 1997

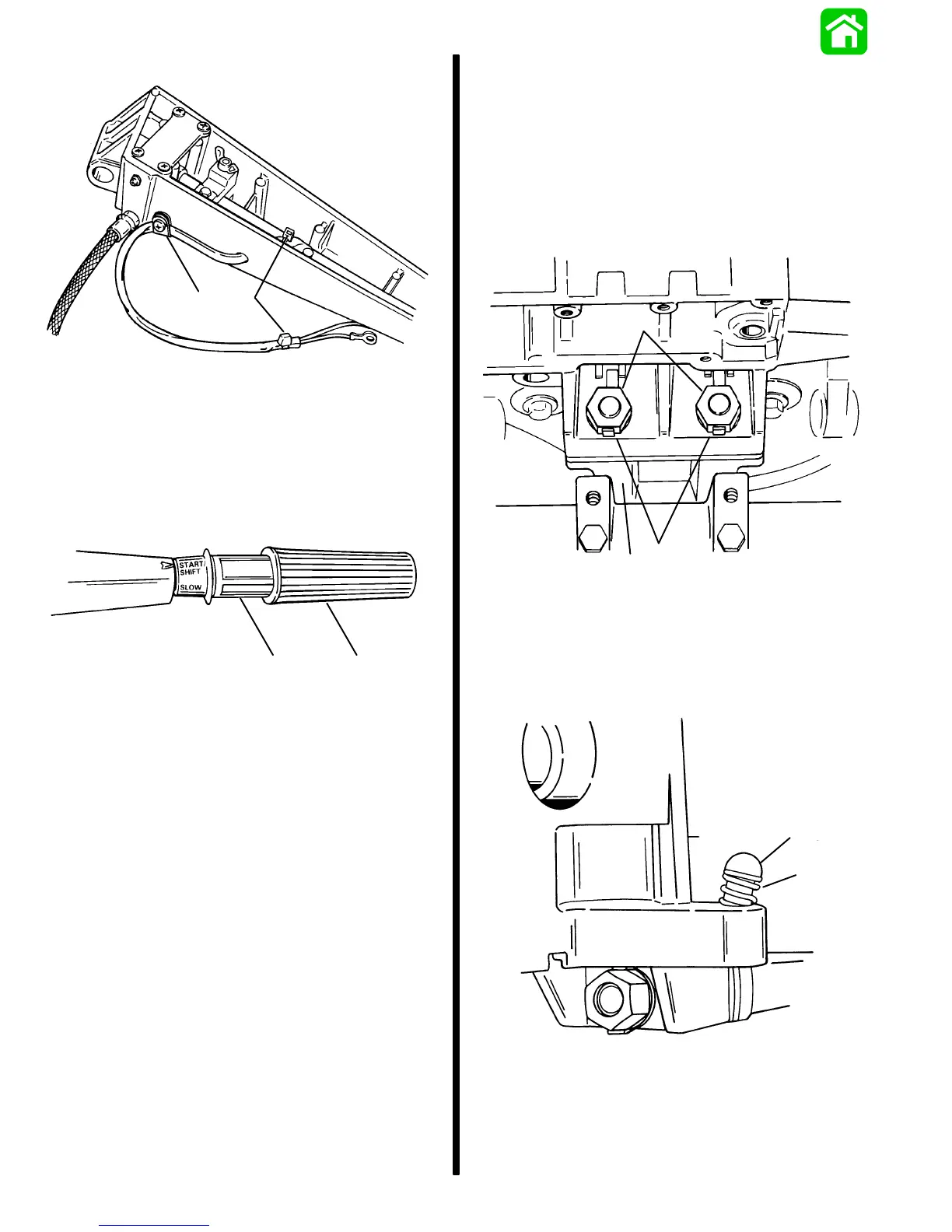

17. Attach sta-strap to end of harness sleeve.
ab
51603
a - Sta-strap
b - J-clip
18. Install rubber twist grip by aligning ridges on plas-
tic twist grip with grooves inside of rubber grip.
NOTE: Applying a soapy water solution to rubber grip
will ease installation.
a
b
51603
a - Ridges
b - Grooves (under handle)
Tiller Handle/Shaft Bracket
Installation
1. Slide bracket over steering arm studs. Secure
bracket to arm with retained nuts and NEW tab
washers.
Torque nuts to 40 lb. ft. (54.0 Nm).
Bend locking tabs against flats of nuts.
a
b
c
51621
a - Tab Washer
b - Nut
c - Steering Arm
2. Install retained spring and detent pin into tiller
handle bracket.
a
b
51621
a - Spring
b - Detent Pin
To Next Page
