7A-6 - ATTACHMENTS/CONTROL LINKAGE 90-830234R3 DECEMBER 1997
e
a
c
d
b
a
e
b
a - Rubber Bushing
b - Rubber Sleeve
c - Jam Nut; Torque to 20 lbs. ft. (27.0 Nm)
d - Coupler
e - Steering Eye
Figure 9. Coupler Assembled
b
d
a
e
c
f
b
g
d
f
g
g
g
51520
51520
95
2-4-C With Teflon (92-825407A12)
95
95
95
95
95
95
a - Jam Nut; Torque to 20 lbs. ft. (27.0 Nm)
b - Engine Steering Arm
c - Coupler
d - Steering Eye
e - Rubber Sleeves
f - Rubber Bushings
g - Pivot Bolt and Locknut

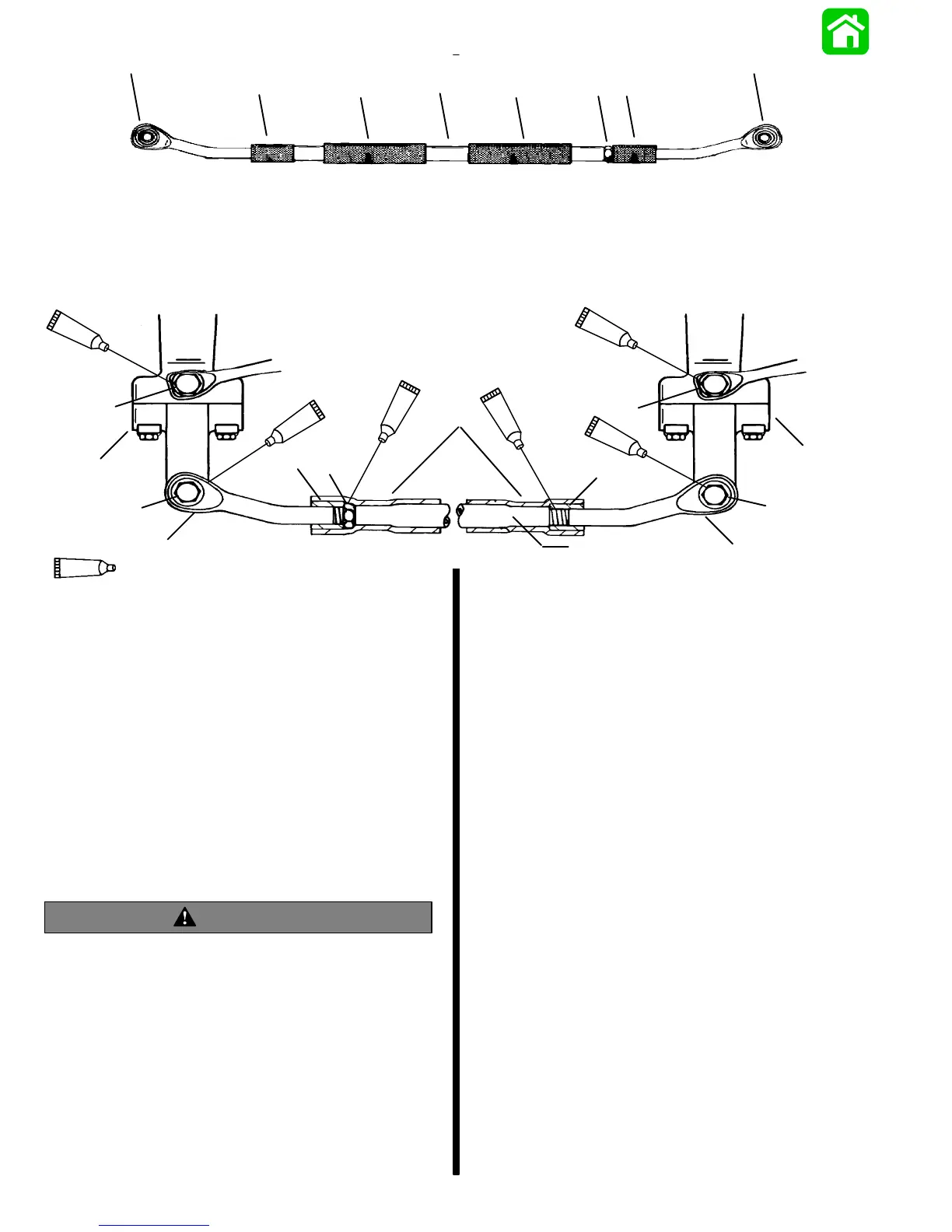

Figure 10. Coupler Parts Sequence
8. Secure coupler with jam nut, as shown in Figures
9 and 10, and torque to 20 lbs. ft. (27.0 Nm).
9. Position rubber bushings as shown above.
10. Slide both rubber sleeves over exposed threads
on each steering eye (Figure 10).
WARNING
Tension adjustment – steering cable mounting
tube must be adjusted away from end of steering
cable when adding tension to steering system (to
remove slack). Failure to adjust tube this way
may result in hard steering, if one engine is tilted
up while operating boat.
Steering System Tension Adjustment
(Parallel Routed Steering Cables)
IMPORTANT: After this Ride-Guide Attachment
Kit is installed, there must be proper tension in
the steering system. Not enough tension will
cause slack (play) in steering system. Too much
tension will cause steering cables to bind.
Perform Step 1, following, to adjust for correct
tension.
1. Loosen adjustment nuts and push steering cable
mounting tube (by-hand) toward end of steering
cable (to remove slack in steering system). Tight-
en adjustment nuts and check system for slack
(play) or too much tightness. If steering system is
too tight, readjust tube away from end of steering
cable (Figure 11) or, if too much slack (play) ex-
ists in system, readjust tube toward end of steer-
ing cable (Figure 11). Tighten nuts and readjust,
if necessary.
