5E-32 - MID-SECTION 90-830234R3 DECEMBER 1997
Filling Procedure Option Two

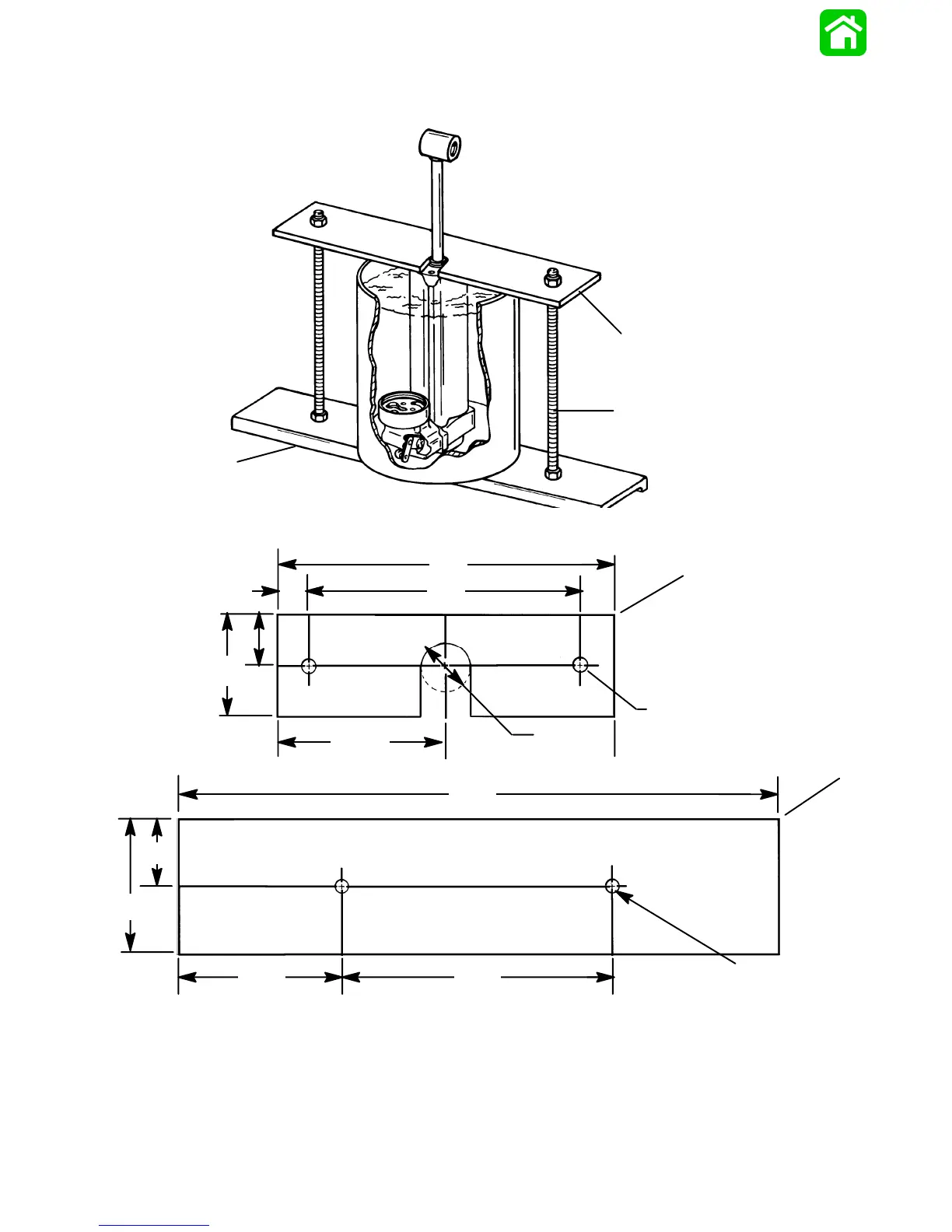

Instructions for Making Retaining Tool
10 in.
(25 cm)
8 in.
(20 cm)
1 in.
(25mm)
3 in.
(76mm)
5 in.
(125mm)
1 1/4 in. dia.
(30m)
20 in.
(508mm)
8 in.
(203mm)
6 in.
(152mm)
4 in.
(100 mm)
2 in.
(50mm)
a
b
c
d
e
a
c
a - Plate (Obtain Locally)
b - Threaded Rod 3/8in x 13in (9.5mm x 330.2mm)
c - Plate (Obtain Locally)
d - Hole [3/8in (9.5mm) Diameter]
e - Hole [3/8in (9.5mm) Diameter]
