90-830234R3 DECEMBER 1997 ATTACHMENTS/CONTROL LINKAGE - 7A-1
Steering Cable and Steering
Link Rod Installation
CAUTION
Control cables must be the correct length when
installed. Cables that are too long may bind or
kink putting extra stress on cables.
1. Install steering mount and steering wheel in
accordance with installation instructions that
accompany each.

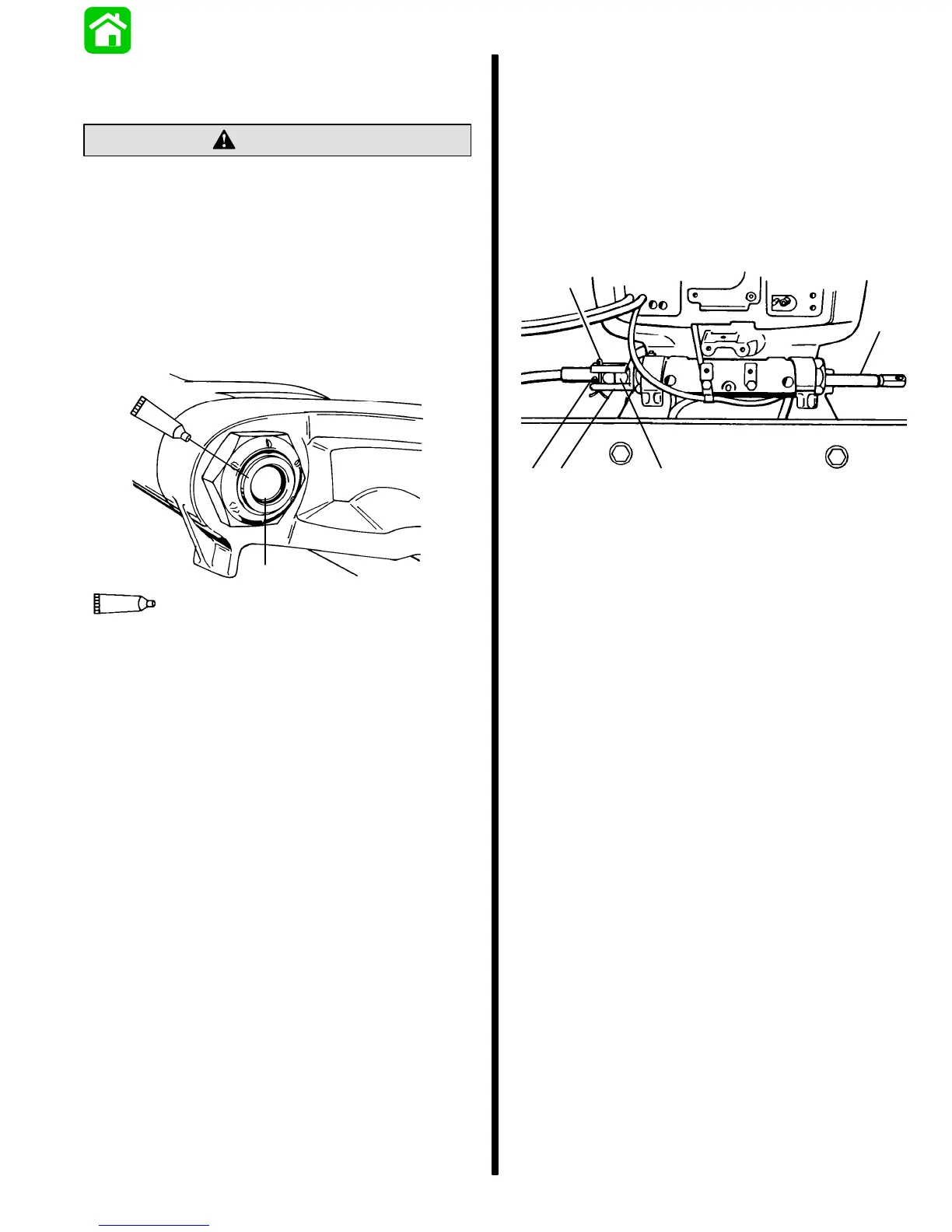

2. Lubricate seal inside of engine tilt tube and entire
steering cable end with Quicksilver 2-4-C
w/Teflon.
a
95
2-4-C With Teflon (92-825407A12)
95
51890
a - Seal
IMPORTANT: Before installing steering cable
into tilt tube, lubricate seal and entire cable end
with Quicksilver 2-4-C w/Teflon.
3. Insert steering cable end thru engine tilt tube and
secure steering cable to tilt tube with steering
cable attaching nut as shown. Torque nut to 35 lb.
ft. (47.5 N·m).
4. Install rubber bumper on inside of locking sleeve,
then install locking sleeve over steering cable (at-
taching nut) and secure with cotter pin. Spread
ends of cotter pin. Be sure to install cotter pin so
that it is located in-between attaching nut and
grease fitting, as shown.
c
d
e
b
a
50130
a - Cable Nut
b - Locking Sleeve
c - Cotter Key
d - Grease Fitting
e - Steering Cable
To Next Page
