6B-6 - LOWER UNIT 90-830234R3 DECEMBER 1997

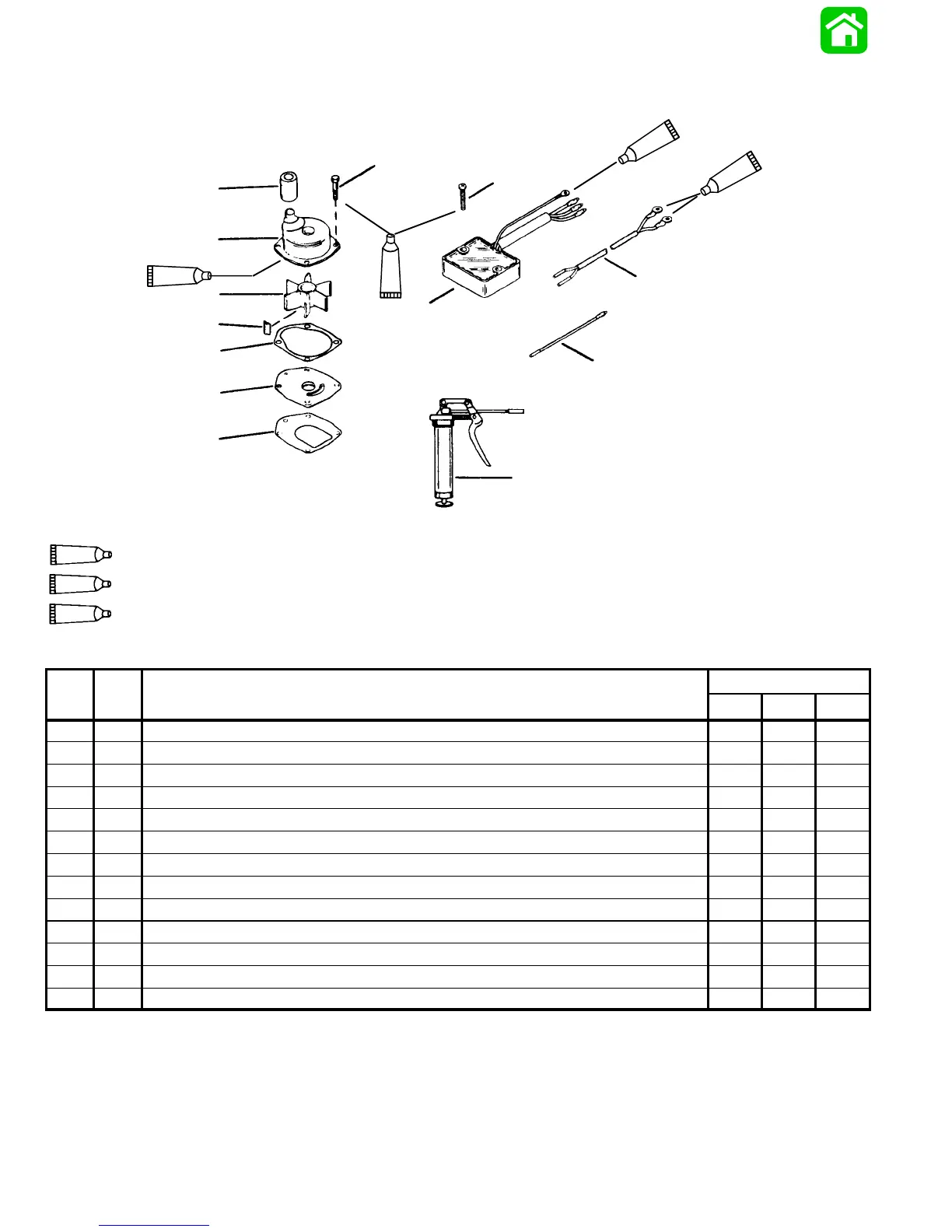

Jet Water Pump Components
1
2
3
4
5
6
7
8
9
10
11
12
13
95
2-4-C With Teflon (92-825407A12)
Liquid Neoprene (92-25711--2)
7
95
25
25
25
7
Loctite 271 (92-809820)
REF.
TORQUE
REF
.
NO.
QTY. DESCRIPTION lb. in. lb. ft. N·m
1 1 REV LIMITER
2 1 HARNESS–adaptor–rev Limiter
3 1 HARNESS–adaptor
4 2 SCREW (M6 x 50) 70 7.9
5 1 GREASE KIT
6 1 GASKET
7 1 GASKET
8 1 WATER PUMP ASSEMBLY
9 1 FACE PLATE
10 4 SCREW (M6 x 1 x 30) 60 6.8
11 1 SEAL
12 1 KEY
13 1 IMPELLER
