5C-30 - MID-SECTION 90-830234R3 DECEMBER 1997

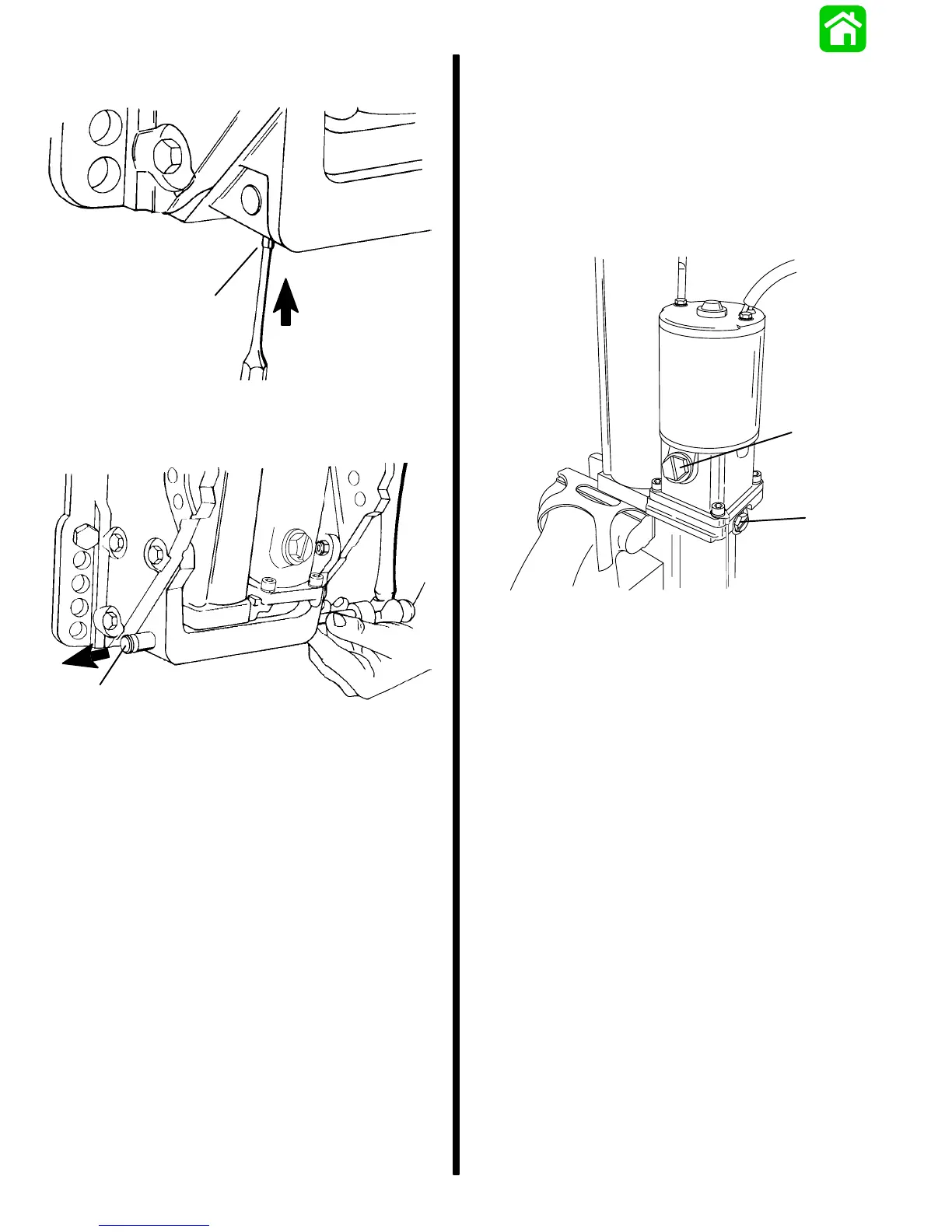

6. Use suitable punch to remove (Drive Up) lower
pin. Retain dowel pin.
a
51144
a - Dowel Pin
7. Use suitable punch to drive out lower pivot pin.
a
51144
a - Lower Pivot Pin
Power Trim Disassembly
IMPORTANT: Power trim system is pressurized.
Trim rod must be in the full “UP” position (fully
extended) prior to fill/drain plug, or manual re-
lease valve removal.
1. Remove reservoir cap.
2. Remove manual release valve assembly to drain
oil.
a
b
55263
a - Reservoir Cap
b - Manual Release Valve
To Next Page
