90-830234R3 DECEMBER 1997 MID-SECTION - 5B-15

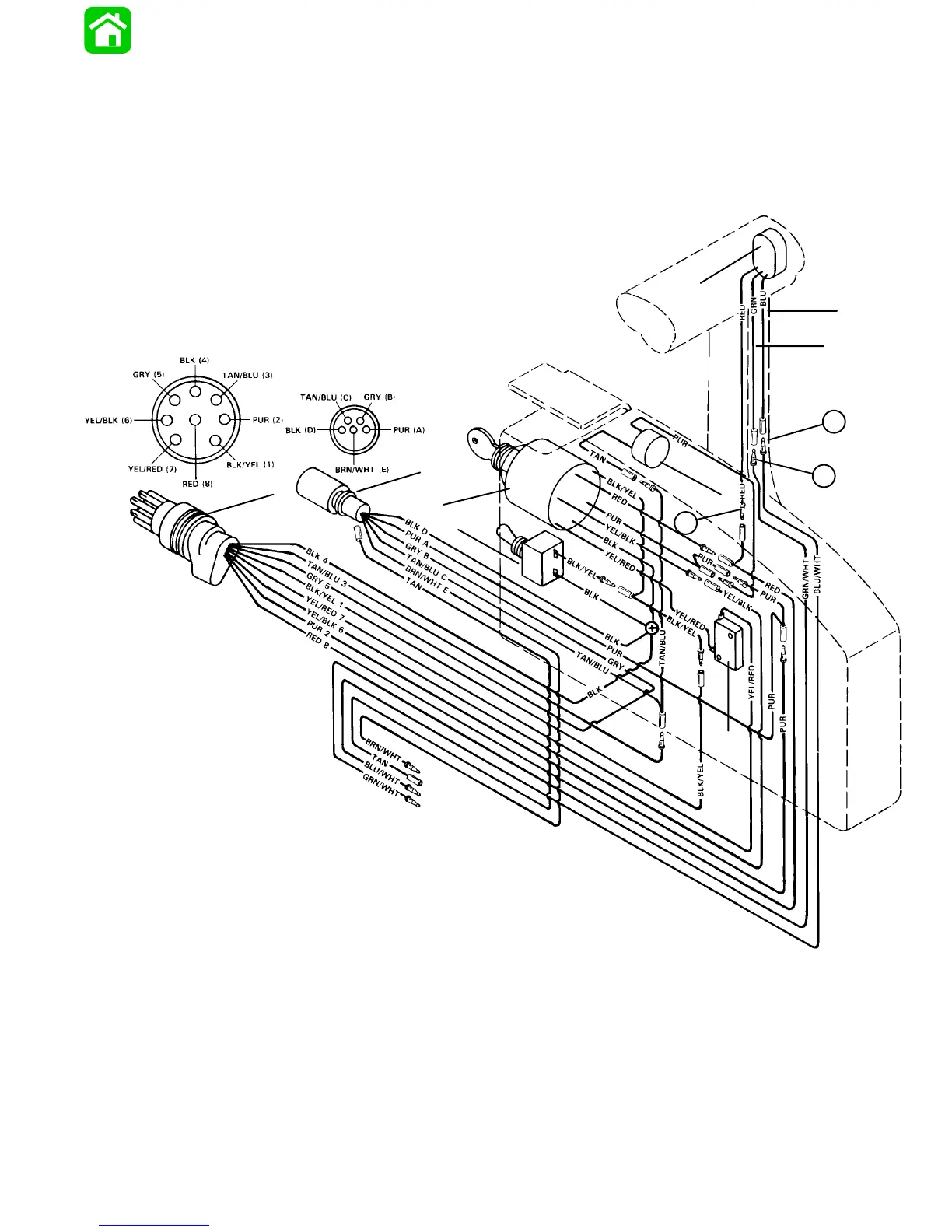

Electrical System Troubleshooting
COMMANDER 2000 Side Mount
Remote Control (Power Trim/Tilt
Electric Start with Warning Horn)
Wiring Diagram
23891
4
5
7
g
f
d
a
b
e
c
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
h
i
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
h-Up
i - Down
To Next Page
