5B-26 - MID-SECTION
90-830234R3
DECEMBER 1997

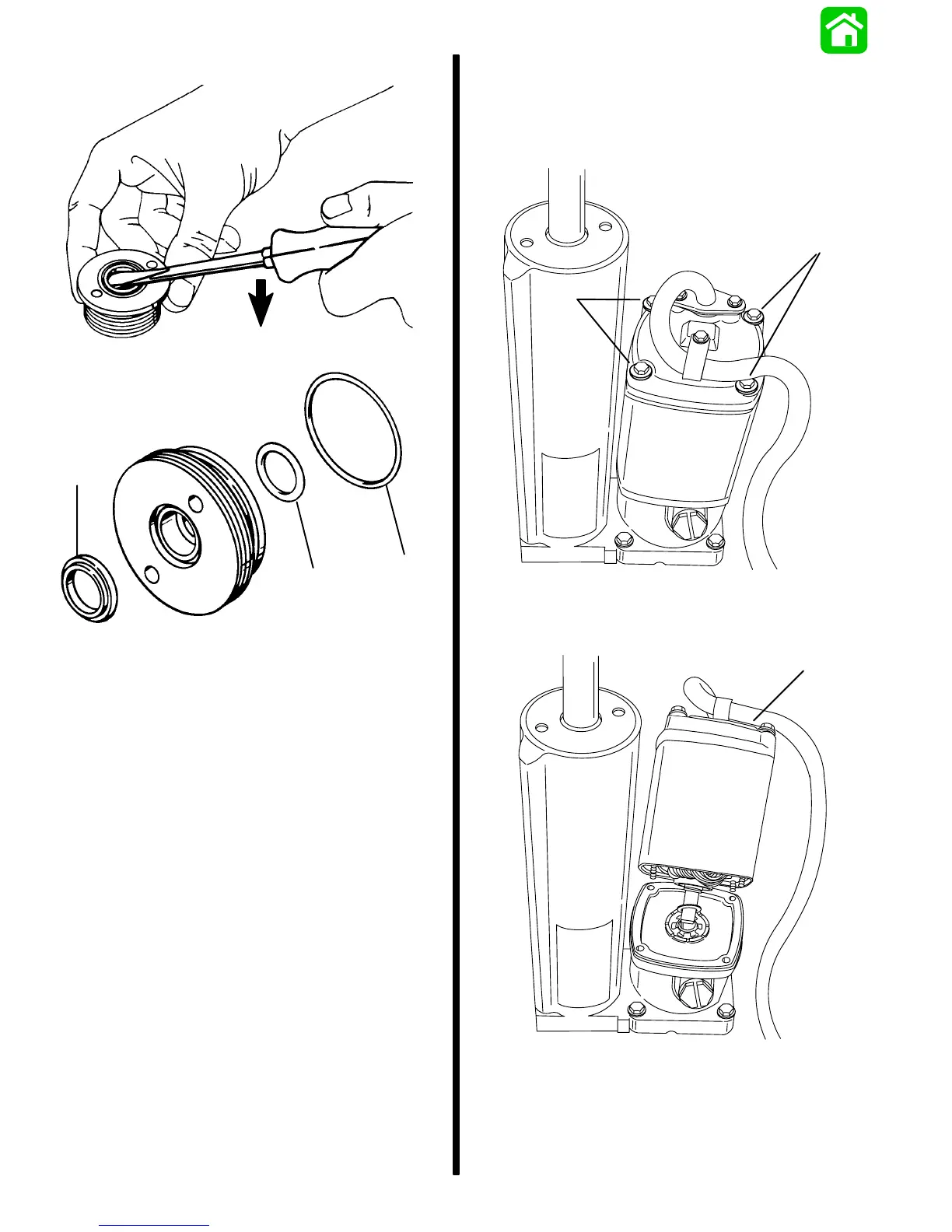

8.
Remove rod wiper
, inner O-ring and outer O-ring.
a
b
c
51
147
51
145
a
-
Rod Wiper
b
-
Inner O-ring
c
-
Outer O-ring
T
rim Motor Removal
1.
Secure power trim assembly in soft jawed vise.
2.
Remove screws securing motor to reservoir and
remove motor
.
a
a
53946
a
-
Screws (4)
3.
Remove motor from reservoir
.
a
53947
a
-
Motor
343
345
