90-830234R3
DECEMBER 1997
MID-SECTION - 5C-29

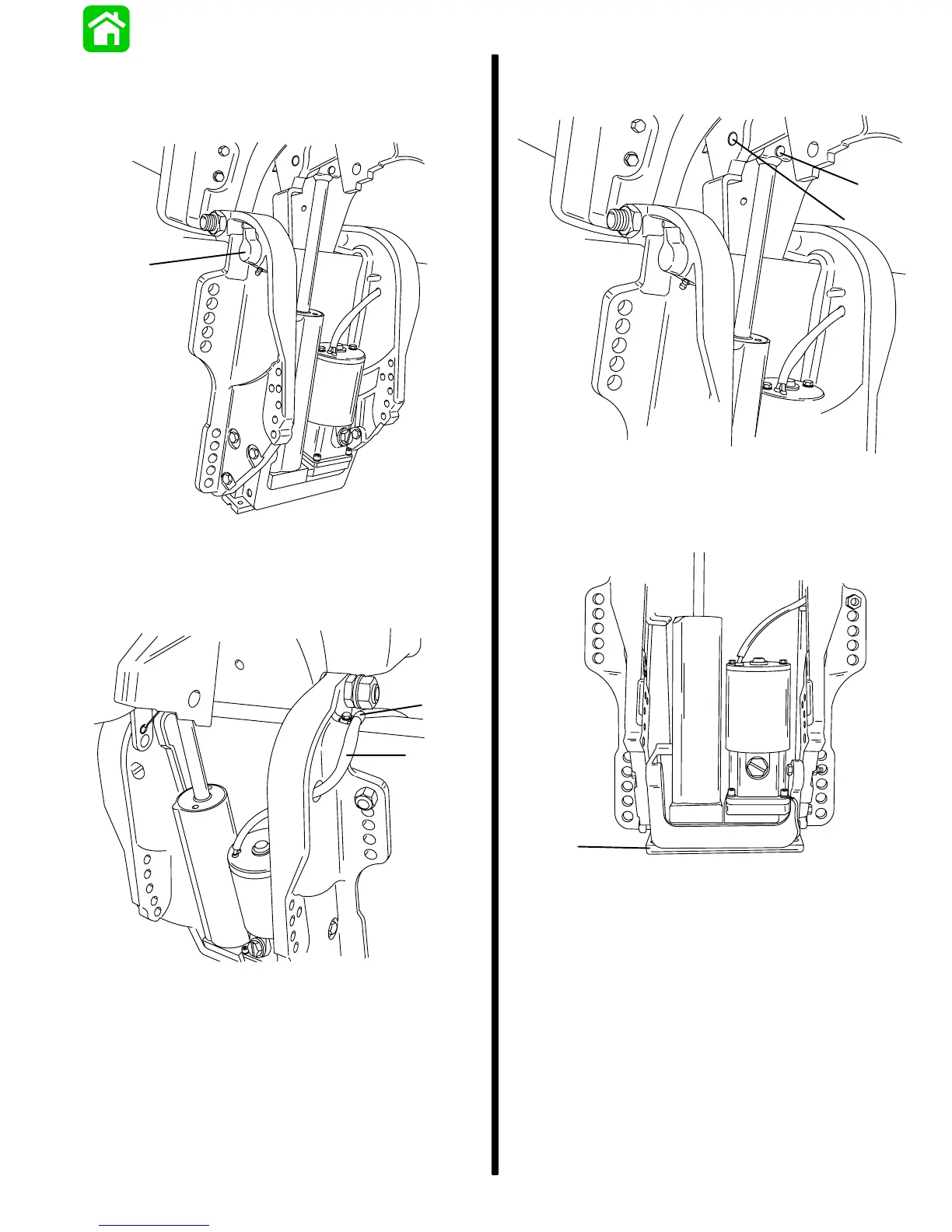

Power T
rim System Removal
1.
T
ilt outboard to the full up position and support
with tilt lock pin.
a
55464
a
-
T
ilt Lock Pin
2.
Disconnect the power trim wire harness and re-
move clamp.
a
b
55264
a
-
Power T
rim Wire Harness Clamp
b
-
Harness
3.
Remove the trilobe pin.
4.
Drive out the upper pivot pin.
a
b
a
-
T
rilobe Pin
b
-
Upper Pivot Pin
5.
Remove the sacrificial anode.
a
55331
a
-
Sacrificial Anode
