5E-20 - MID-SECTION 90-830234R3 DECEMBER 1997

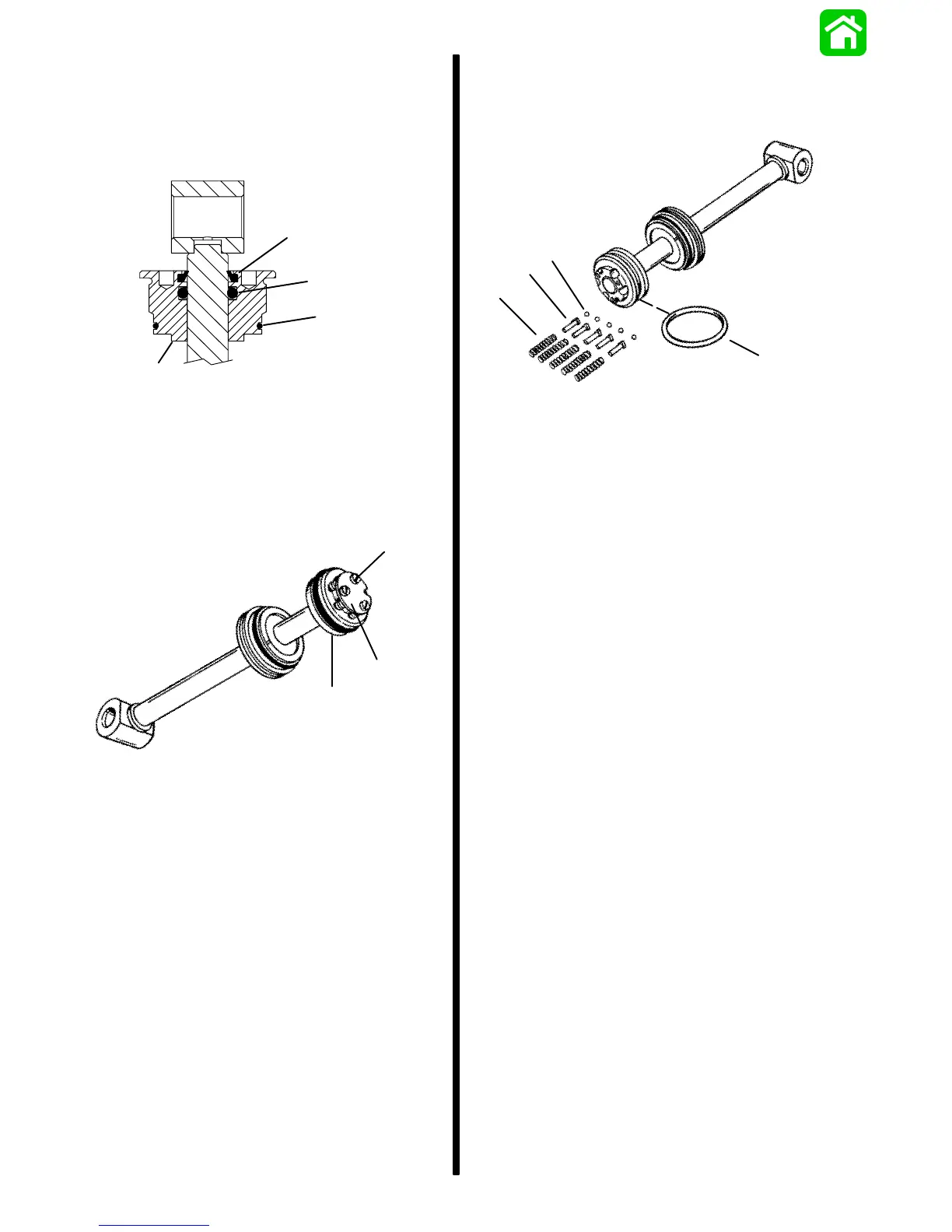

Shock Rod Disassembly
NOTE: The only serviceable items on the shock rod
assembly are the O-rings and wiper ring. If shock rod
requires any other repair, replace shock rod assem-
bly.
a
c
b
b
a - End Cap
b - O-ring
c - Wiper Ring
1. Place shock rod assembly on clean work surface.
2. Remove three (3) screws and remove plate from
shock rod piston.
a
b
c
51143
a - Screw (3)
b - Plate
c - Shock Rod Piston
3. Remove check ball components from shock rod
piston.
4. Remove O-ring.
a
b
c
d
51147
a - Spring (5)
b - Seat (5)
c - Ball (5)
d - O-ring
To Next Page
