Mercury 90 Service Manual

7A-14 - ATTACHMENTS/CONTROL LINKAGE 90-830234R3 DECEMBER 1997

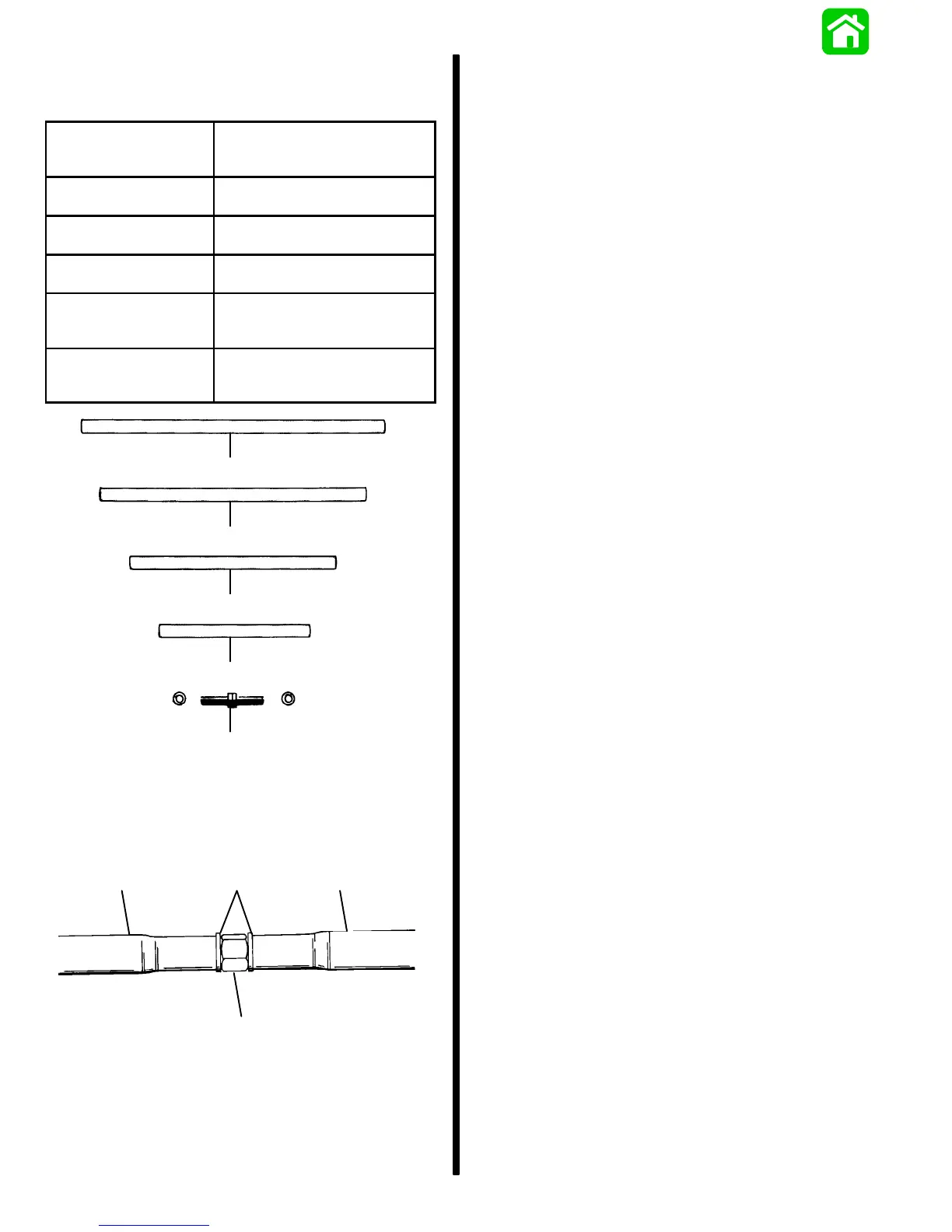

Ride Guide Steering Attachment
Extension Couplers
Outboard Center Line
Distance
Required Coupler(s)
Between Steering Eyes
(Shown Below)
22-1/2 in. thru 24-1/2 in.
(57.2cm thru 62.2cm)
12 in. (30.5cm) Coupler
23-1/2 in. thru 27-1/2 in.
(59.7cm thru 69.9cm)
15 in. (38.1cm) Coupler (Supplied
with this kit)
26-1/2 in. thru 30-1/2 in.
(67.3cm thru 75.5cm)
18 in. (45.7cm) Coupler
30 in. thru 34 in. (76.3cm
thru 86.4cm)
9 in. (22.9cm) Coupler and 12 in.
(30.5cm) Coupler (Connected
together with coupler link rod)
33 in. thru 37 in.
(83.8cm thru 94.0cm)
12 in. (30.5cm) Coupler and 12
in. (30.5cm) Coupler (Connected
together with coupler link rod)
a
b
c
d
e
a - 18 in. (45.7cm) Coupler (97932-3)
b - 15 in. (38.1cm) Coupler (97932-2)
c - 12 in. (30.5cm) Coupler (97932-1)
d - 9 in. (22.9cm) Coupler (97932-4)
e - Coupler Link Rod (98181A1)
51890
a
ab
c
a - Couplers Connected Together
b - Lockwashers
c - Coupler Link Rod - Torque to 20 lbs. ft. (27.0 Nm) into End
of Each Coupler.
Figure 14. Couplers Connected Together with
Coupler Link Rod
Transom Mounted
Ride-Guide Attaching Kit
Installation (73770A1)
Attaching Kit Installation
1. Lubricate both holes in pivot block (Figure 1) with
Quicksilver 2-4-C w/Teflon.
2. Place pivot block on pivot spacer and secure to
transom bracket with 3/8 in. x 2-1/2 in. (9.5mm x
63.5mm) bolt, flat washer and locknut, as
shown in Figure 1. Torque locknut to 20 lbs. ft.
(27.0 Nm).
