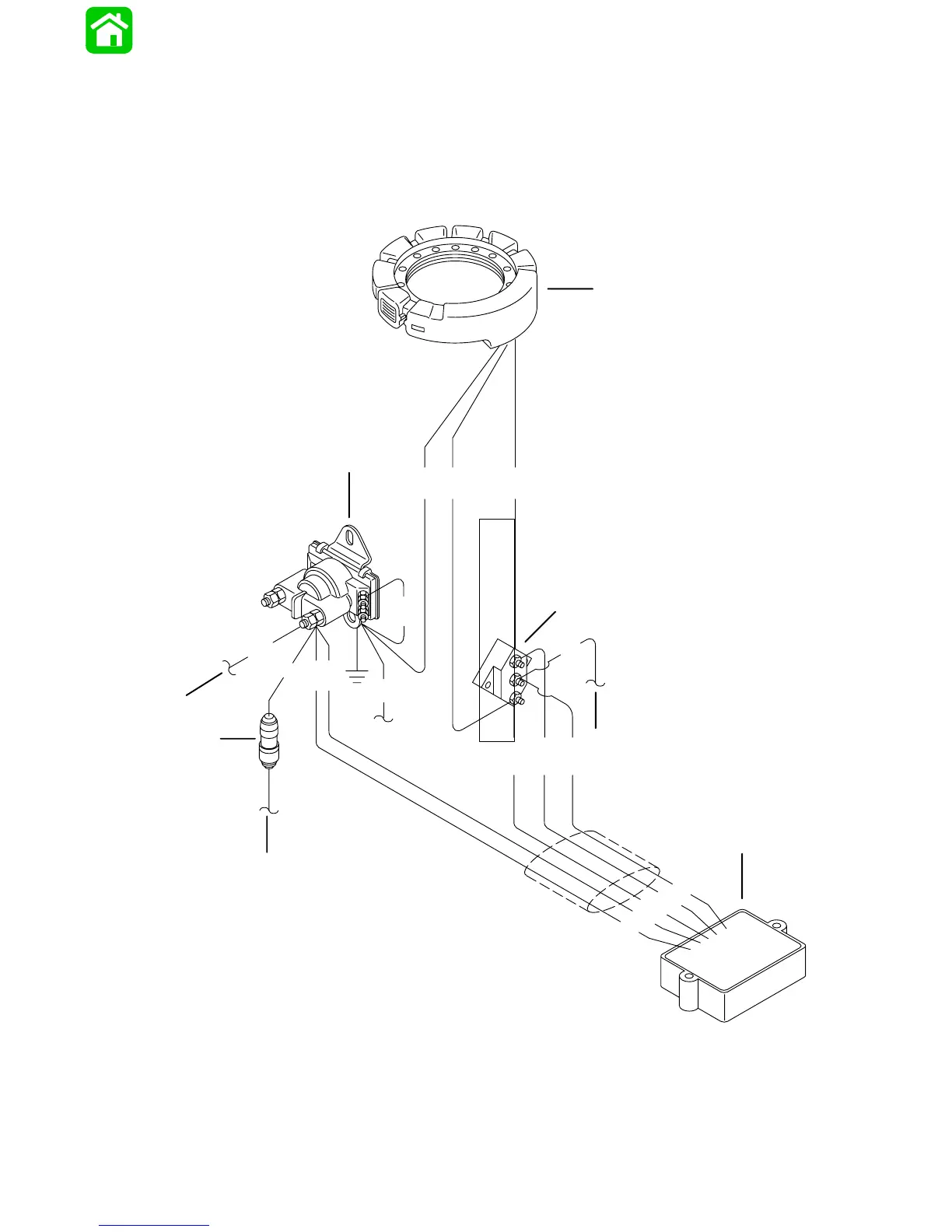

3 Cylinder 14 and 16 Ampere BLACK
Stator Battery Charging Wiring
Diagram
IMPORTANT: After electrical connections are
made, coat all terminal connections using Quick-
silver Liquid Neoprene (92-25711), to avoid cor-
rosion.
51000
YEL
YEL
BLK
BLK
RED
RED
YEL
YEL
GRY
GRY
YEL
YEL
RED
RED
BLK
RED
RED
GRY
a
h
g
f
e
c
d
b
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Terminal Block
c - To Tachometer
d - Voltage Regulator/Rectifier
e - To Remote Control Harness
f - 20 Ampere Fuse
g - Battery (+) Positive Terminal
h - Starter Solenoid
To Next Page
