90-830234R3 DECEMBER 1997 MID-SECTION - 5B-27

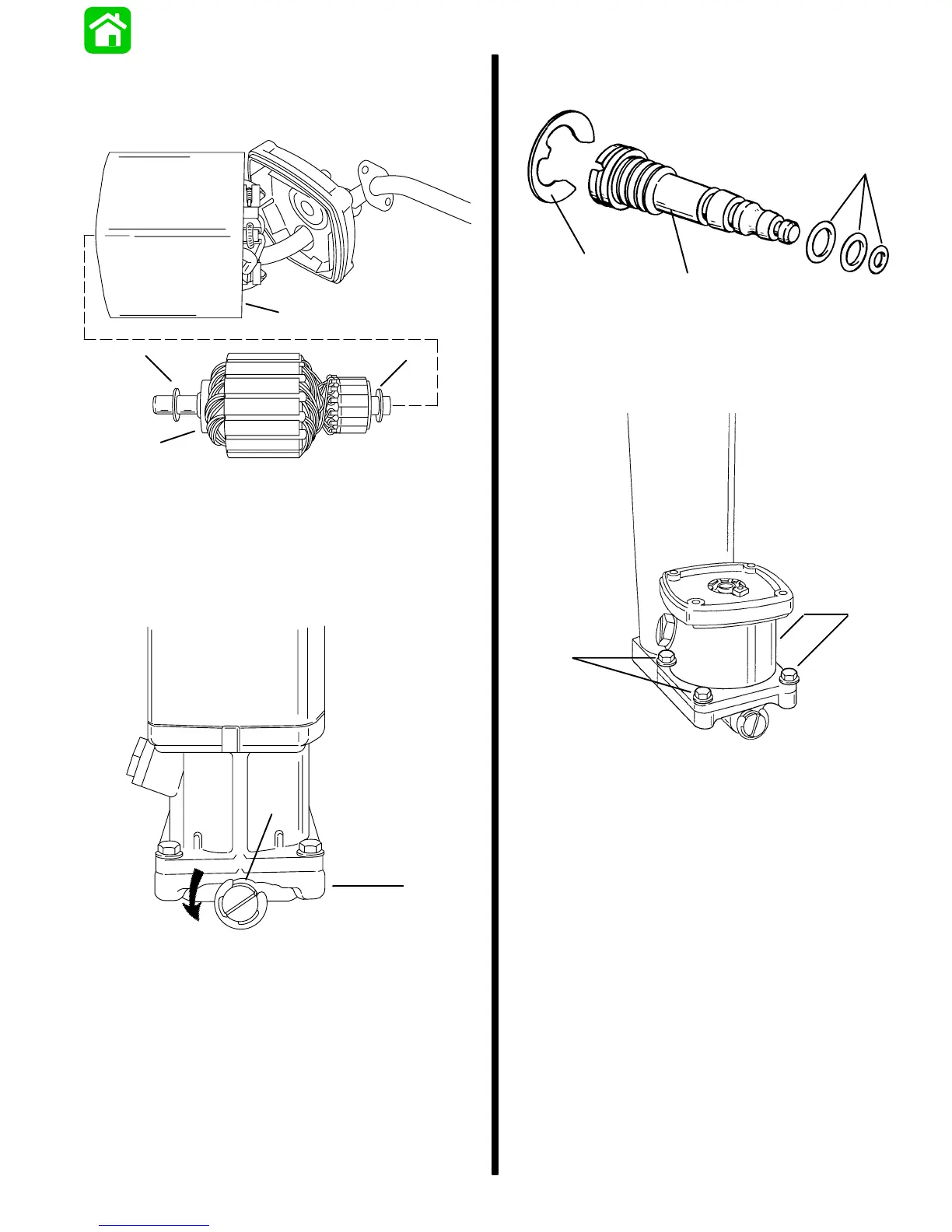

Trim Motor Disassembly
1. Remove armature from motor frame. Note posi-
tion of washers on armature.
a
b
c
c
53963
a - Armature
b - Motor Frame
c - Washer (1 each end of armature)
Reservoir Assembly Removal
1. Remove manual release valve from manifold.
a
b
53943
a - Manual Release Valve
b - Manifold
2. Remove “E” clip and O-rings from manual re-
lease valve.
a
c
b
51196
a - “E” Clip
b - O-rings
c - Manual Release Valve
3. Remove 4 screws securing reservoir to manifold.
a
a
53959
a - Screws (4)
To Next Page
