Mercury 90 Service Manual

90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-11

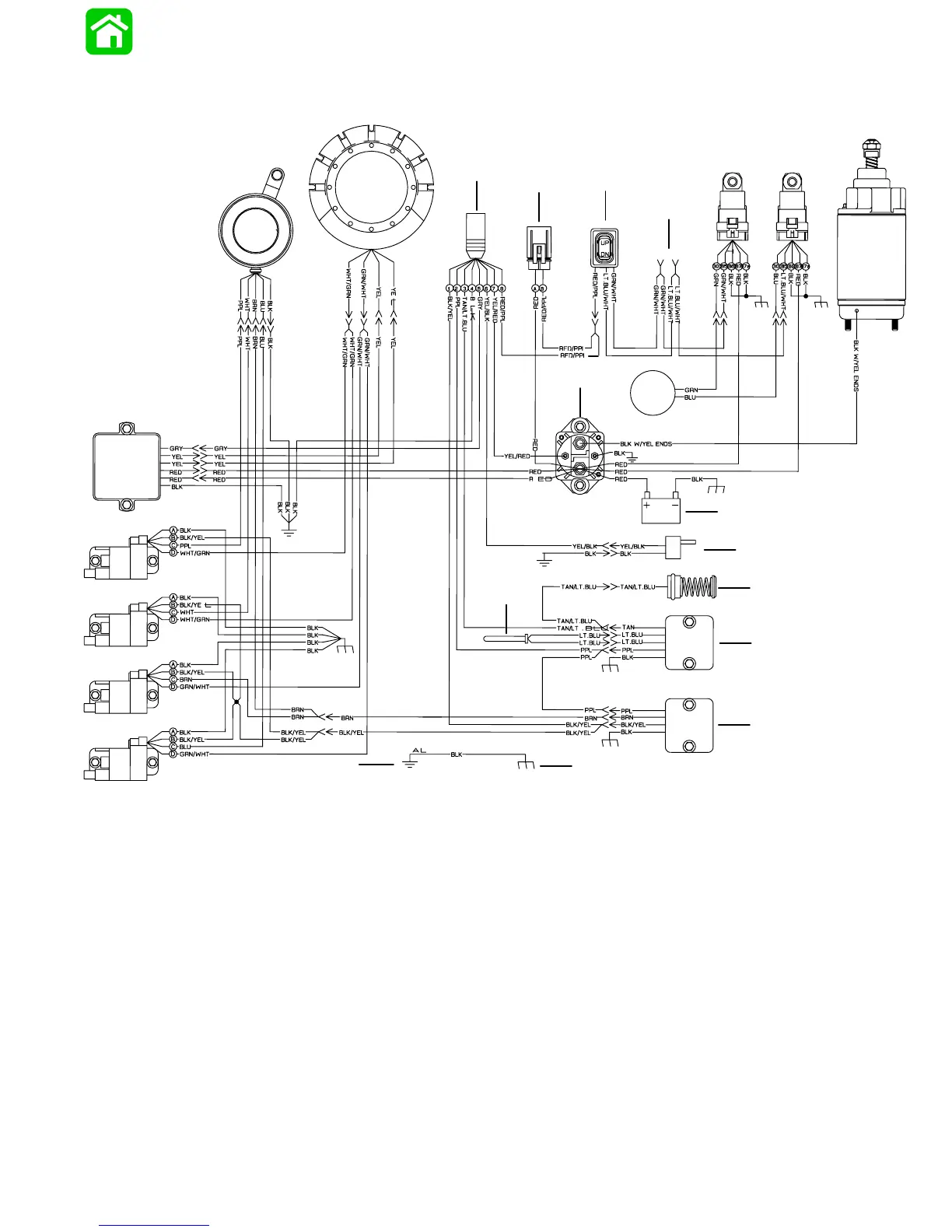

1997 80 Jet/100/115/125 Wiring Diagram (w/CDM)
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Trigger
b - Stator
c - Remote Control
d - 20 Ampere Fuse
e - Trim Switch
f - To Remote Trim Switch
g - Down Relay
h - Up Relay
i - Starter
j - Trim Pump
k - Starter Solenoid
l - 12 Volt Battery
m- Fuel Enrichment Solenoid
n - Temperature Switch
o - Oil Warning Module
p - RPM Limiter Module
q - Oil Level Switch
r - Engine Block
s - Electrical Plate
t - CDM #4
u - CDM #3
v - CDM #2
w - CDM #1
x - Voltage Regulator
