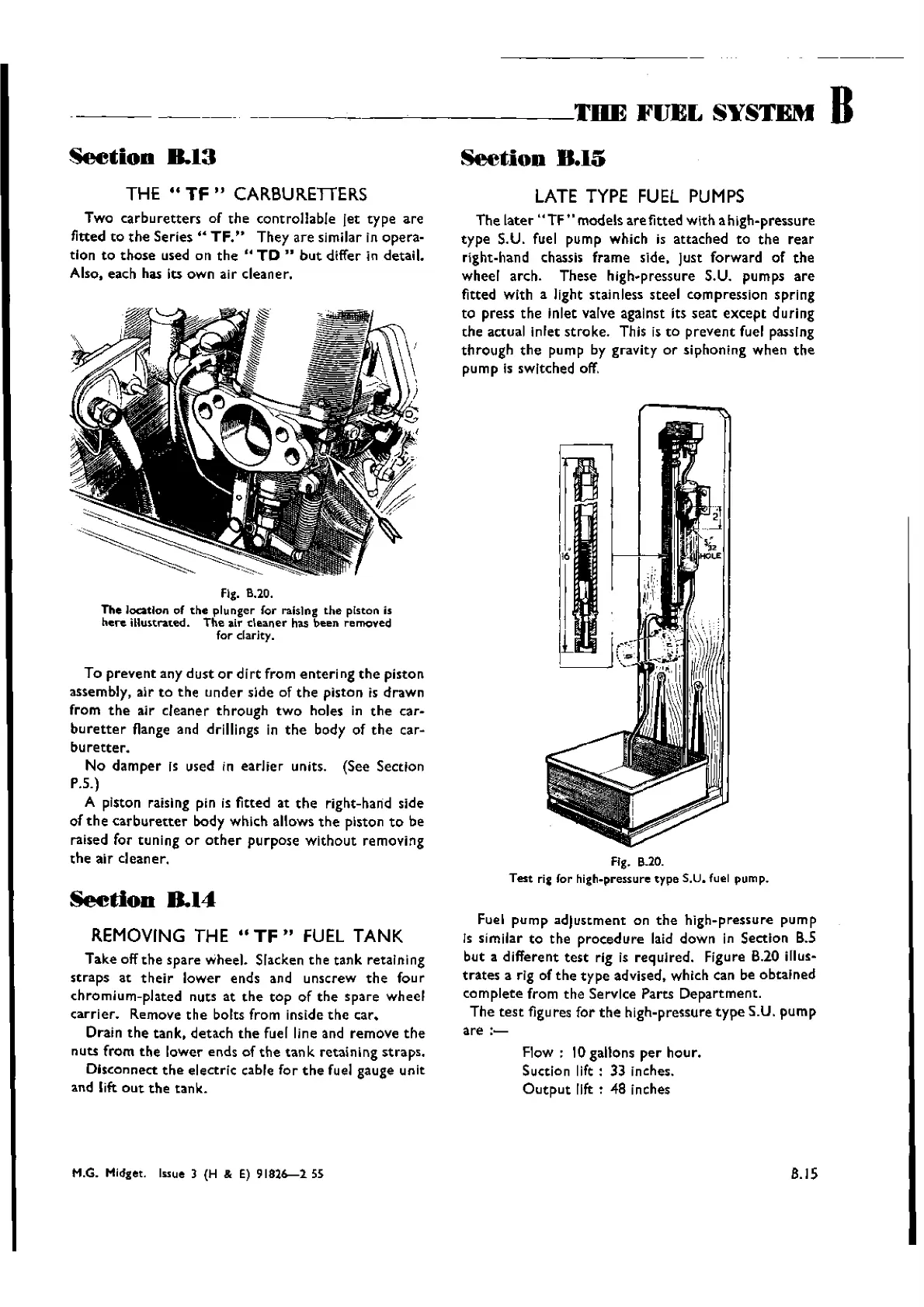

Seetion B.13
---'------TIIE FUEL SYSTEM B
SeetiOD B.15
THE Ie TF IJ CARBURETIERS
Two carburetters of the controllable Jet type are
fitted to the Series ,. TF.'· They are similar in opera-
tion to those used on the" TO II but differ in detail.
Also. each has its
own air cleaner.
FIg. B.20.
The location of the plunger for raisIng the piston is
here illustrated. The air c\llaner has been removed
for
darity.
To prevent any dust or dirt from entering the piston
assembly, air to the under side of the piston is drawn
from the air cleaner through two holes in the car-
buretter flange and drillings in the body of the car-
buretter.
No damper Is used in earlier units. (See Section
P.5.)
A piston raising pin is fitted at
the right-hand side
of
the carburetter body which allows the piston to be
raised for
tuning or other purpose without removing
the air cleaner.
Seetion 0.14
REMOVING THE H TF U FUEL TANK
Take off the spare wheel. Slacken the tank retalning
straps at their lower ends and unscrew the four
chromium-plated nuts at the top of the spare wheel
carrier. Remove the bolts from inside the car.
Drain the tank. detach the fuel line and remove the
nuts from the lower ends ofthe tank retaining straps.
Disconnect the electric cable for the fuel gauge unit
and lift out the tank.
M.G. Midget. Issue 3 (H & E) 91826-255
LATE TYPE FUEL PUMPS
The later "TF" models are fitted with ahigh-pressure
type S.U. fuel pump which is attached to the rear
right-hand chassis frame Side. Just forward of the
wheel arch. These high-pressure S.U. pumps are
fitted with a light stainless steel compression spring
to press the Inlet valve against its seat except during
the actual Inlet stroke. This is to prevent fuel passing
through the pump by gravity or Siphoning when the
pump Is switched off.
m
16
Fig. B.20.
Test ric for high-pressure type S.U. fuel pump.
Fuel pump adjustment on the high-pressure pump
Is similar to the procedure laid down in Section a.s
but a different test rig is required. Figure B.20 illus-
trates a rig of the type advised, which can be obtained
complete from the Service Parts Department.
The test figures for the high-pressure type S.U. pump
are :-
Flow: 10 gallons per hour.
Suction lift: 33 inches.
Output 11ft : 48 inches
B.IS
