(vi) Wiring-out position and wiring connection
● Electrical installation work must be performed according to the installation manual by an electrical installation service
provider qualified by a power provider of the country, and be executed according to the technical standards and other
regulations applicable to electrical installation in the country.
Be sure to use an exclusive circuit.
● Use specified cord, fasten the wiring to the terminal securely, and hold the cord securely in order not to apply unexpected
stress on the terminal.
● Do not put both power source line and signal line on the same route. It may cause miscommunication and malfunction.
● Be sure to do D type earth work.
● For the details of electrical wiring work, see attached instruction manual for electrical wiring work.

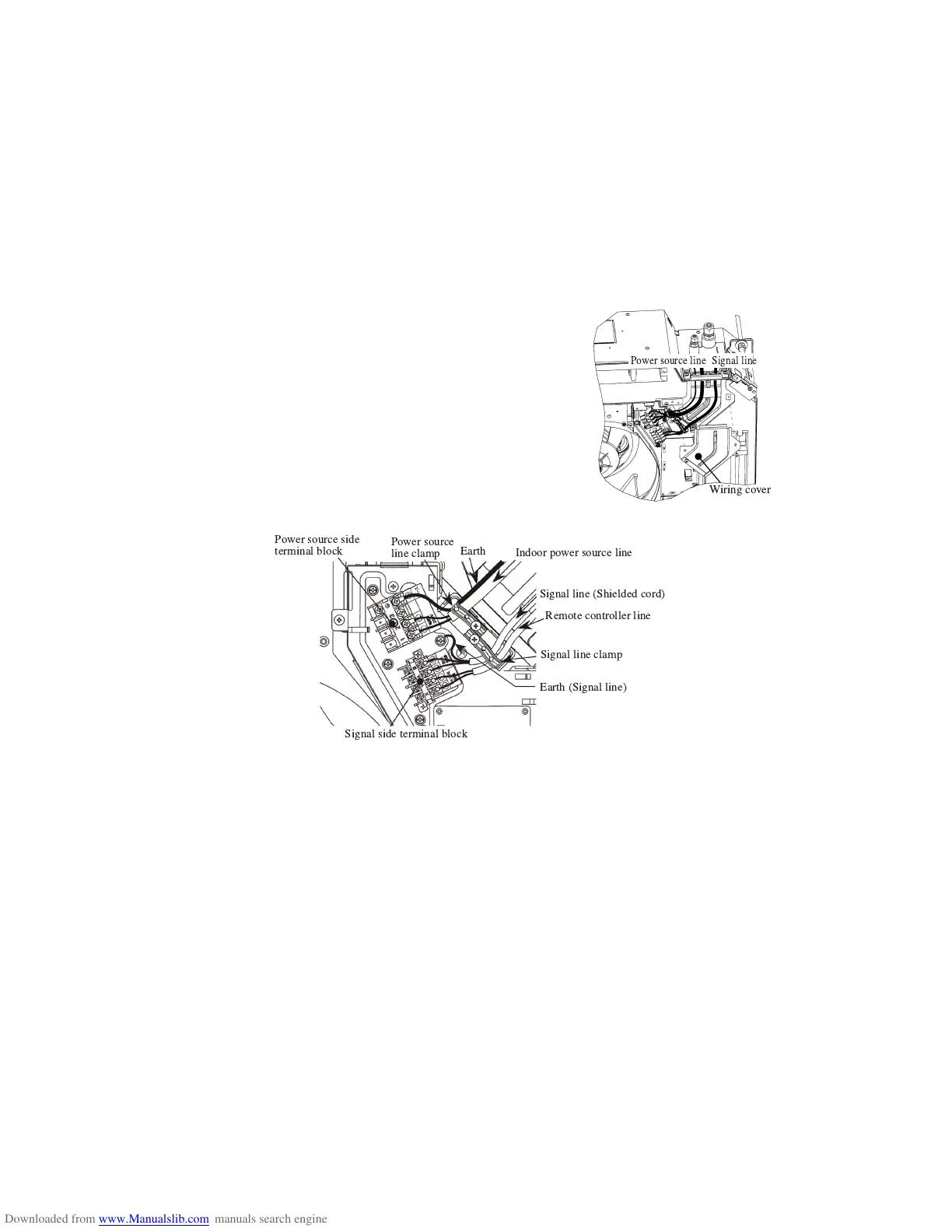

q Remove a lid of the control box (3 screws) and the wiring cover
(2 screws).
w Hold each wiring inside the unit and fasten them to terminal block
securely.
e Fix the wiring with clamps.
r Install the removed parts back to original place.
