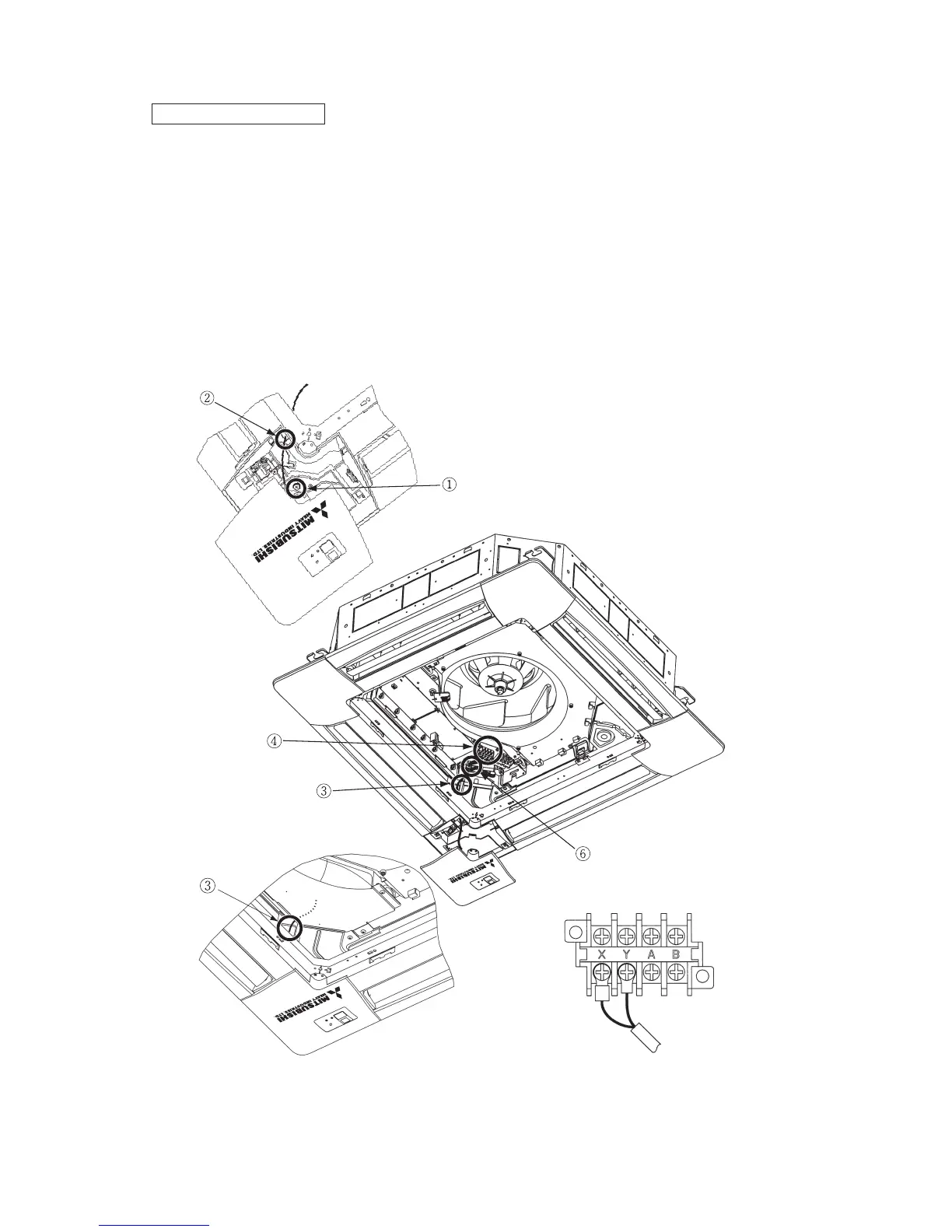

Installation of the receiver
1 Loosen the bolts which fix the panel and make a gap between the panel and the indoor unit
2 Put the wiring of the receiver through the opening.
3 Put the wiring on the notch on the control box so as not to be pinched by the control box and lid as shown below.
4 Connect the wiring to the terminal block provided in the control box. (Non- polarized)
5 Attach the receiver to the panel according to the panel installation manual.
6 Fix the wiring with the clamp so that the wiring do not contact the edge of control box’s metal sheet.
7 Reattach the control box lid with 3 screws removed.
*Note: Make sure the wires not to be pinched by any other parts like panel, control box and indoor unit.
Ter minal block in the indoor
unit control box
To Next Page
